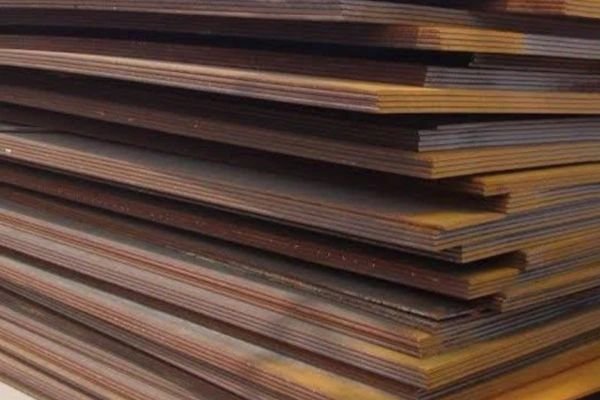

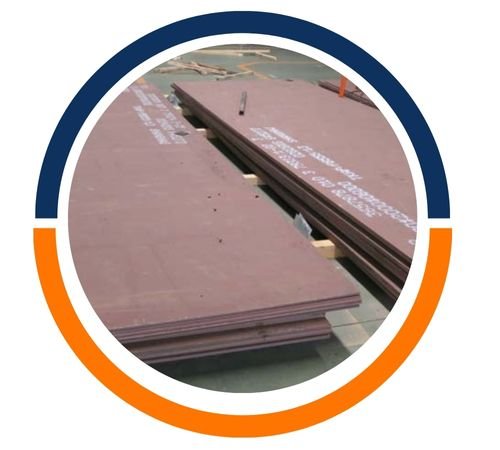

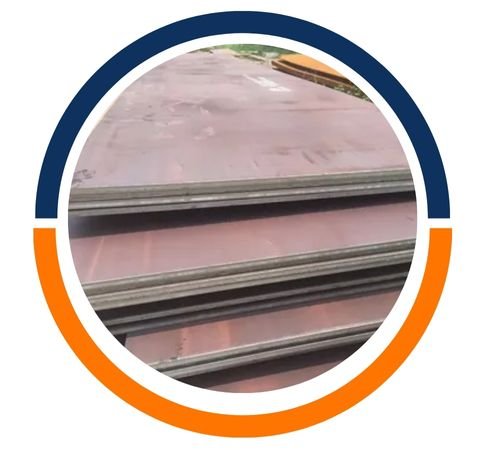

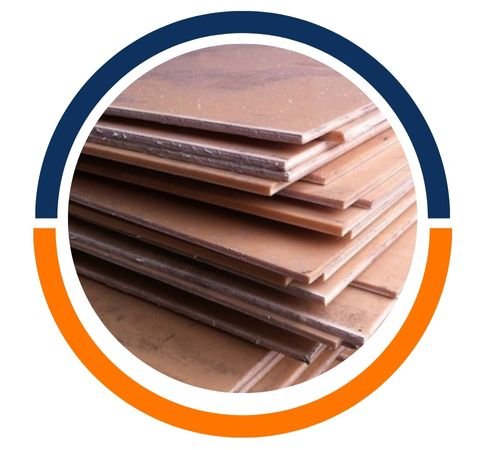

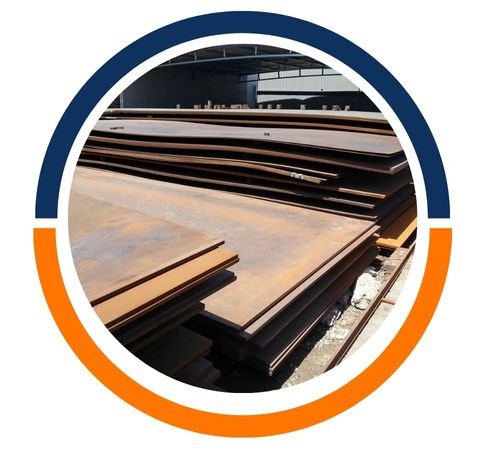

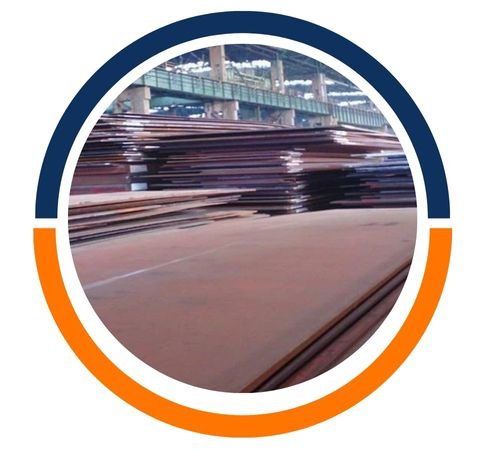

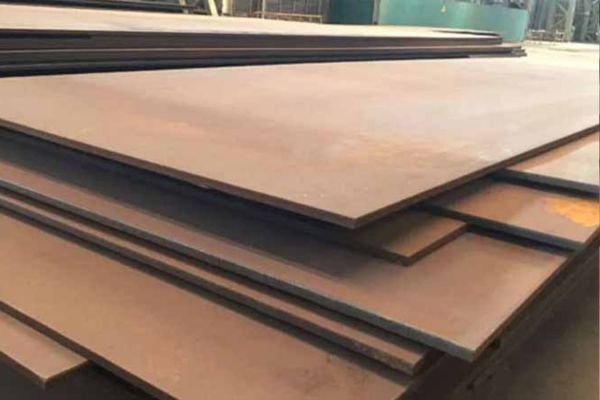

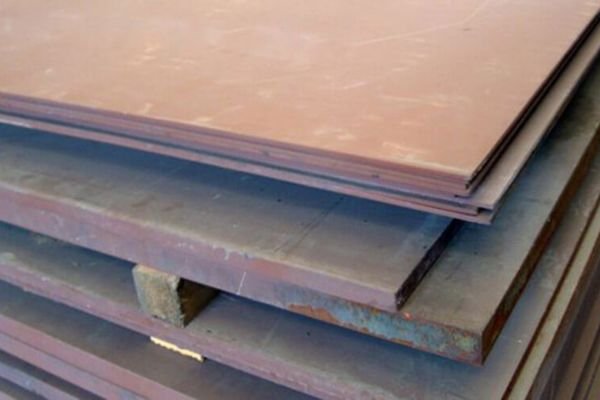

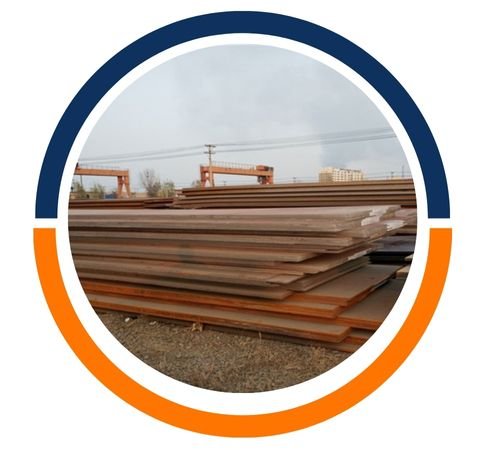

Luke Steel is a well-established name in Houston, Houstan, and among the top manufacturers and suppliers of 400 BHN Sheets and Plates. The organization adheres to providing wear-resistant steel products of international quality standards, catering to industries with high-end applications. By utilizing advanced technology, customer orientation, and efficient logistics, Luke Steel has emerged as an ideal supplier for construction, mining, and engineering industry clients. Their 400 BHN plates provide superior performance and durability in extreme environments and are perfect for heavy-duty applications where strength, abrasion resistance, and extended service life are required.
Luke Steel’s 400 BHN Sheets and Plates are made of high-carbon alloy steel and alloyed with manganese, chromium, and boron for improved properties. Having a Brinell Hardness Number of around 400, these plates provide superior abrasion resistance. Mechanical properties consist of high tensile strength of up to 1250 MPA, better toughness, and excellent formability. Specially designed for endurance, they are subjected to abrasion-resistant coatings and remain hard even in severe working conditions. These rugged features render the plates highly appropriate for high-demand and high-impact industrial applications.
| Heat Treatment | Rolling/Normalised, N, Q+T |
|---|---|
| Width | 1000mm-4500mm |
| Thickness | 5mm-150mm |
| Length | 3000mm-18000mm |
| Production | Hot-Rolled (HR) |
| Surface Paint | PVDF, PE, HDP, SMP, EP |
| Plate | C | Si | Mn | P | S | Cr | Ni | Mo | B | CEV | CET |
| thickness mm | max % | max % | max % | max % | max % | max % | max % | max % | max % | typv | typv |
| 3- 6 | 0.15 | 0.70 | 1.60 | 0.025 | 0.01 | 0.50 | 0.25 | 0.25 | 0.004 | 0.41 | 0.28 |
| 3-（8） | 0.15 | 0.70 | 1.60 | 0.025 | 0.01 | 0.30 | 0.25 | 0.25 | 0.004 | 0.33 | 0.23 |
| 8 – 20 | 0.15 | 0.70 | 1.60 | 0.025 | 0.01 | 0.50 | 0.25 | 0.25 | 0.004 | 0.37 | 0.27 |
| （20）-32 | 0.18 | 0.70 | 1.60 | 0.025 | 0.01 | 1.00 | 0.25 | 0.25 | 0.004 | 0.48 | 0.29 |
| （32）-45 | 0.22 | 0.70 | 1.60 | 0.025 | 0.01 | 1.40 | 0.50 | 0.60 | 0.004 | 0.57 | 0.31 |
| （45）-51 | 0.22 | 0.70 | 1.60 | 0.025 | 0.01 | 1.40 | 0.50 | 0.60 | 0.004 | 0.57 | 0.38 |
| （51）-80 | 0.27 | 0.70 | 1.60 | 0.025 | 0.01 | 1.40 | 1.00 | 0.60 | 0.004 | 0.65 | 0.41 |
| （80）-130 | 0.32 | 0.70 | 1.60 | 0.025 | 0.01 | 1.40 | 1.50 | 0.60 | 0.004 | 0.73 | 0.48 |
| Yield Strength | Tensile Strength | Brinell Hardness | Elongation | Reduction of Area |
| 140,000 Psi | 180,000 Psi | 400BHN | 15% | 60% |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| 1/8″ | 3/8″ | 3/4″ | 1-1/2″ | 3″ |
| 3/16″ | 1/2″ | 1″ | 2″ | 4″ |
| 1/4″ | 5/8″ | 1-1/4″ | 2-1/2″ | |
| *1/8″ thick plate is available in one size only 60″x 120″. The 3/6″ thick plate is available only as 48″ x 144″ and 96″ x 144″. | ||||
| Thickness | Width | Length |
| 4 | 2000 | 6000 |
| 5 | 2000 | 6000 |
| 6 | 2000 | 6000 |
| 6 | 2500 | 6000 |
| 8 | 2000 | 6000 |
| 8 | 2500 | 6000 |
| 10 | 2000 | 6000 |
| 12 | 2000 | 6000 |
| 15 | 2000 | 6000 |
| 16 | 2000 | 6000 |
| 20 | 2000 | 6000 |
| 25 | 2000 | 6000 |
| 32 | 2000 | 6000 |
| 40 | 2000 | 6000 |
| 50 | 2000 | 6000 |
| 60 | 1800 | 3400 |
