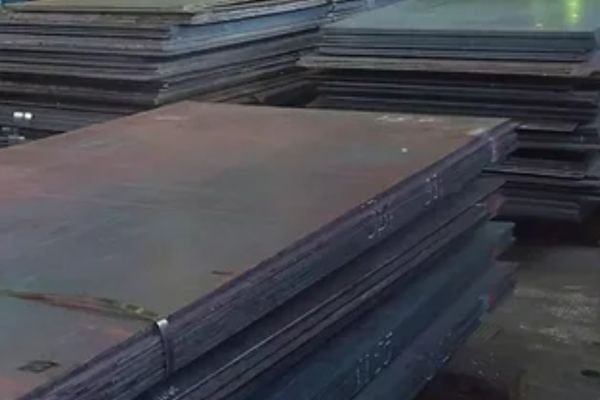

Luke Steel stands out as a top-notch manufacturer and supplier of high-quality A36 steel sheet and plate, proudly based in Houston, USA. Known for their dedication to excellence and prompt delivery, Luke Steel provides dependable solutions for structural steel needs across a variety of industries. With a strong emphasis on durability, strength, and versatility, their A36 steel products adhere to strict industry standards, making them perfect for a wide range of fabrication and construction projects. Catering to clients all over the country, Luke Steel blends advanced processing capabilities with personalized customer service to deliver cost-effective, high-performance steel materials tailored to meet specific project demands.
A36 steel sheet and plate is a low-carbon steel alloy primarily made up of iron, along with small amounts of carbon (up to 0.29%), manganese (up to 1.03%), phosphorus, sulfur, and silicon. It’s well-regarded for its excellent weldability and machinability, boasting a yield strength of about 36,000 psi and a tensile strength ranging from 58,000 to 80,000 psi. Its good formability and toughness make it a great choice for structural applications. The balanced composition and mechanical properties of this steel allow it to perform admirably under moderate stress and temperature conditions.
| Item | Carbon Structural Steel Plates – ASTM A36 |
|---|---|
| Thickness | 5mm-150mm |
| Width | 1000mm-4500mm |
| Length | 3000mm-18000mm |
| Grade | C | Si | Mn | P | S |
| ASTM A36 | 0.25 max. | 0.4 max. | 0.8-1.2 | 0.035 max. | 0.035 max. |
| Tensile strength, kis [MPa] | Yield strength, min, kis [MPa] | Elongation in 8 in. [200 mm], min, % | Elongation in 2 in. [50 mm], min, % |
| 58-80 [400-550] | 36 [250] | 20 | 23 |
| EN | GB | USA | BS | ISO | JIS | IS |
| S235J2G4, Fe360D2 | Q235D | A36 | 40EE | Fe 360B | SM 400 A | IS 226 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Luke Steel is one of the most prominent manufacturers and suppliers of superior quality A36 Steel Sheet and Plate in Houstan, USA. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.
| Thickness (Inches) | Tolerance Over Specified Thickness, For Widths Given, in Inches | |||||||||
| 48 to 59 | 144 to 167 | Thru 47 | 60 to 71 | 96 to 107 | 72 to 83 | 132 to 143 | 120 to 131 | 108 to 119 | 84 to 95 | |
| To under 1/4 | 0.030 | – | 0.030 | 0.030 | 0.030 | 0.030 | 0.040 | 0.030 | 0.030 | 0.030 |
| 1/4 to under 5/16 | 0.030 | – | 0.030 | 0.030 | 0.030 | 0.030 | 0.040 | 0.040 | 0.030 | 0.030 |
| 2 to under 3 | 0.090 | 0.150 | 0.090 | 0.090 | 0.110 | 0.100 | 0.140 | 0.130 | 0.120 | 0.100 |
| 3/8 to under 5/8 | 0.030 | 0.060 | 0.030 | 0.030 | 0.030 | 0.030 | 0.050 | 0.040 | 0.040 | 0.030 |
| 5/16 to under 3/8 | 0.030 | 0.050 | 0.030 | 0.030 | 0.030 | 0.030 | 0.040 | 0.040 | 0.030 | 0.030 |
| 6 to under 10 | 0.240 | 0.270 | 0.230 | 0.240 | 0.240 | 0.240 | 0.240 | 0.240 | 0.240 | 0.240 |
| 3/4 to under 1 | 0.030 | 0.070 | 0.030 | 0.030 | 0.040 | 0.030 | 0.060 | 0.050 | 0.050 | 0.040 |
| 1 to under 2 | 0.060 | 0.110 | 0.060 | 0.060 | 0.070 | 0.060 | 0.100 | 0.100 | 0.080 | 0.060 |
| 3 to under 4 | 0.110 | 0.150 | 0.110 | 0.110 | 0.130 | 0.110 | 0.140 | 0.140 | 0.140 | 0.110 |
| 4 to under 6 | 0.150 | 0.200 | 0.150 | 0.150 | 0.150 | 0.150 | 0.150 | 0.150 | 0.150 | 0.150 |
| ASTM | Thickness (mm) | Weight (kg/m) |
| ASTM A36 | 3 mm | 23.55 kg |
| 4 mm | 31.4 kg | |
| 5 mm | 39.25 kg | |
| 6 mm | 47.1 kg | |
| 8 mm | 62.8 kg | |
| 10 mm | 78.5 kg | |
| 12 mm | 94.2 kg | |
| 16 mm | 125.6 kg | |
| 20 mm | 157 kg | |
| 22 mm | 172.7 kg | |
| 25 mm | 196.25 kg | |
| 28 mm | 219.8 kg | |
| 32 mm | 251.2 kg | |
| 36 mm | 282.6 kg | |
| 40 mm | 314 kg | |
| 45 mm | 353.25 kg | |
| 50 mm | 392.5 kg | |
| 55 mm | 431.75 kg | |
| 60 mm | 471 kg | |
| 65 mm | 510 kg | |
| 70 mm | 549.5 kg | |
| 75 mm | 588.75 kg | |
| 80 mm | 628 kg | |
| 90 mm | 706.5 kg | |
| 100 mm | 785 kg |
| TYPE | ALLOY | IMPERIAL SIZES IN STOCK | ||
|---|---|---|---|---|
| Thickness | Length | Width | ||
| Coil | ASTM A36 | 1/4 Inch, 3/16 Inch, 3/8 Inch, 5/16 Inch, 1/2 Inch, 7/16 Inch | Any | 60 Inch, 48 Inch,72 Inch |
| Cut to Length | 3/16 Inch to 1/2 Inch | Any | 84 Inch to 96 Inch | |
| 3/16 Inch to 1/2 Inch | Any | 96 Inch, 84 Inch | ||
| Hot Rolled (Strip Mill) | 3/8 Inch to 12 Inch | 240 Inch – 480 Inch | 72 Inch to 144 Inch | |
| Discrete (Mill Rolled) | 1/4 Inch, 3/16 Inch, 5/16 Inch | 240 Inch – 480 Inch | 84 Inch to 120 Inch |
A36 steel sheet and plate finds extensive use in structural applications, such as bridges, buildings, construction frameworks, and equipment manufacturing. Its outstanding weldability and strength make it perfect for components like base plates, gussets, tanks, and brackets. In the automotive and machinery sectors, A36 steel is commonly used to create frames and support structures. Its versatility for cutting, grinding, drilling, and welding facilitates seamless fabrication, making it a go-to material for both commercial and industrial projects that require durability, strength, and affordability.
Luke Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Houstan, USA.
