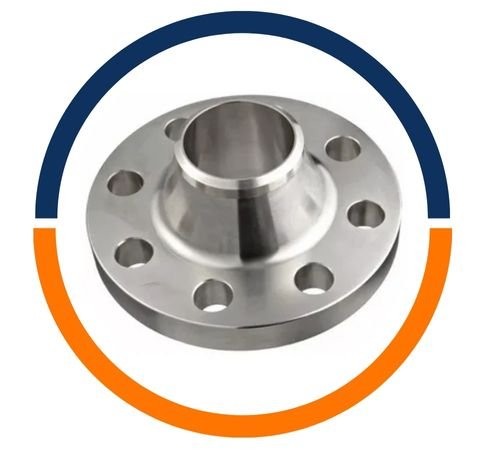

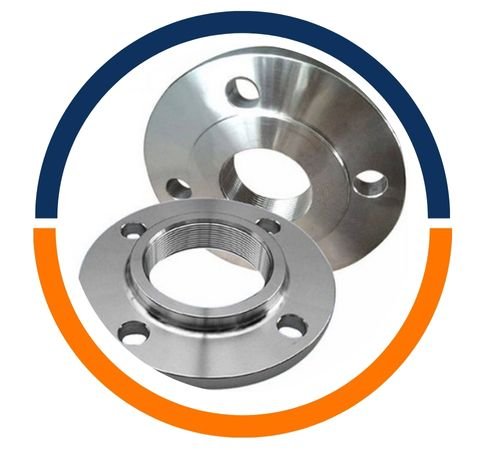

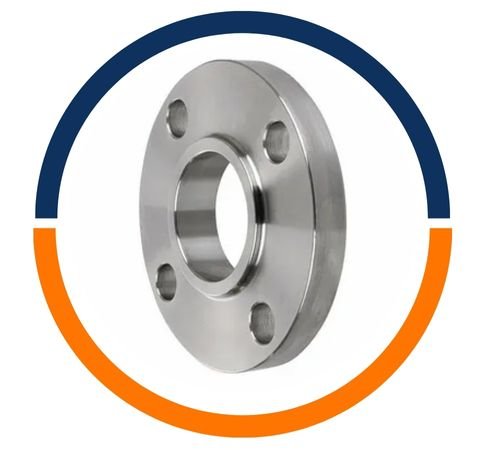

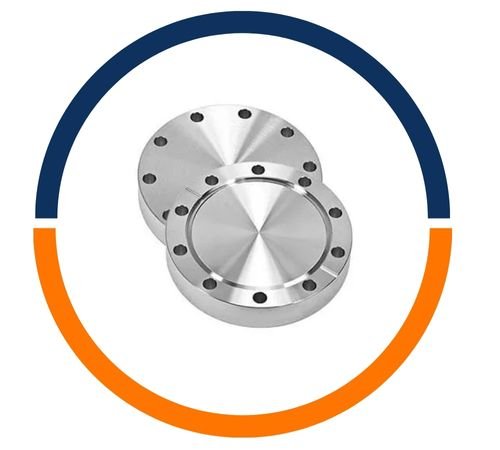

Luke Steel is a prominent manufacturer and distributor of Alloy Steel F12 Flanges in Houston, USA. The organization has a comprehensive assortment of F12 flanges that are well designed to achieve ASTM A182 standards and have steadfast performance in high-temperature and high-pressure applications. The flanges come in several types, such as weld neck, slip-on, blind, socket weld, and threaded flanges, and have different sizes and pressure classes. Luke Steel’s dedication to quality, precision machining, and on-time delivery has gained the confidence of sectors including oil & gas, power generation, chemical processing, and petrochemicals throughout the United States and overseas.
Alloy Steel F12 Flanges consist of a chromium-molybdenum steel alloy having about 1.0–1.5% chromium, 0.44–0.65% molybdenum, and ≤0.15% carbon, and trace amounts of manganese, silicon, and iron. This makes them display superb thermal stability, corrosion resistance, and high strength at higher temperatures. The mechanical properties are tensile strength of 415–585 MPa, yield strength of ≥205 MPa, and 20% minimum elongation. F12 flanges exhibit adequate weldability, toughness, and fatigue strength and hence find applications in both tempered or annealed and normalized conditions for high-pressure piping systems.
Alloy Steel Flanges Specification :Â ASTM A182 / ASME SA182
Dimension Standard :Â ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard :Â ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size :Â 1/2″ (15 NB) to 48″ (1200NB)
Class / Pressure :Â 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

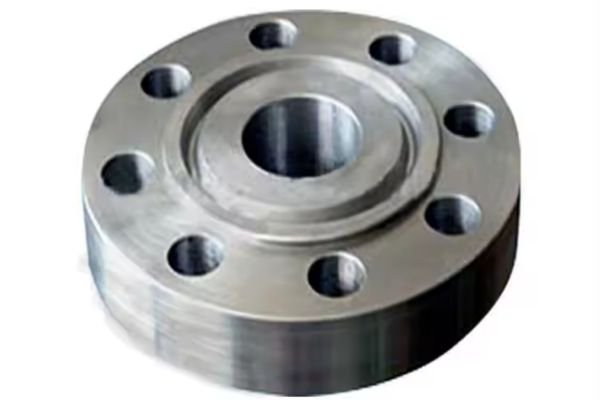

Flange Face Type :Â Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
DIN Flanges :Â DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673.
JIS Flanges :Â JIS B2220 5K, JIS B2220 10K, JIS B2220 16K, JIS B2220 20K
BS Flanges : BS4504 PN 6, BS 4504 PN 10, BS4504 PN 16, BS4504 PN 25, BS4504 PN 40, BS 4504 PN 64, BS 4504 PN 100, BS 4504 PN 160, BS 4504 PN 250, BS 10, BS Table D, BS Table E, BS Table F, BS Table H.
| Grade | C | Mn | P | S | Si | Ni | Ch | Mo | Cb |
|---|---|---|---|---|---|---|---|---|---|
| F12 | 0.05-0.15 | 0.30-0.60 | 0.045 | 0.045 | 0.50 max | – | 0.80-1.25 | 0.44-0.65 | – |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| F12 | 415 | 220 | 20 | – | 121-174 |
| STANDARD | UNS | WERKSTOFF NR. |
|---|---|---|
| Alloy Steel F12 | K11562/K11564 | 1.7335 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

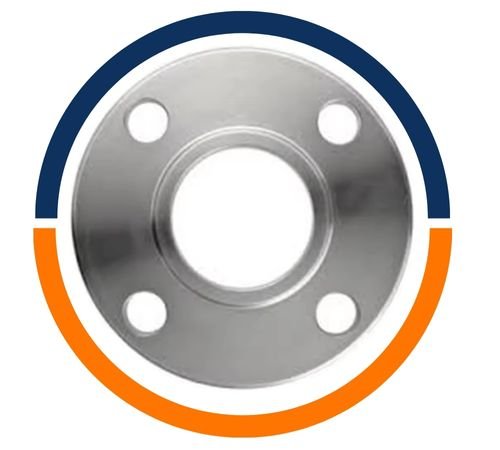

| SORF (Slip On) | NPS (Nominal Pipe Size) | WRNR (Weld Neck) | NPT (Threaded) | Loose (Lap Joint) | SWRF (Socket Weld) | BLRF (Blind) |
|---|---|---|---|---|---|---|
| 1 | ½ | 2 | 1 | 1 | 2 | 2 |
| 2 | ¾ | 2 | 2 | 2 | 2 | 2 |
| 2 | 1 | 3 | 2 | 2 | 2 | 2 |
| 3 | 1¼ | 3 | 3 | 3 | 3 | 3 |
| 3 | 1½ | 4 | 3 | 3 | 3 | 4 |
| 5 | 2 | 6 | 5 | 5 | 5 | 5 |
| 8 | 2½ | 10 | 8 | 8 | 8 | 7 |
| 9 | 3 | 11.5 | 9 | 9 | 9 | 9 |
| 11 | 3½ | 12 | 12 | 11 | 11 | 13 |
| 13 | 4 | 16.5 | 13 | 13 | 13 | 17 |
| 15 | 5 | 21 | 15 | 15 | 15 | 20 |
| 19 | 6 | 26 | 19 | 19 | 19 | 27 |
| 30 | 8 | 42 | 30 | 30 | 30 | 47 |
| 43 | 10 | 54 | 43 | 43 | 43 | 70 |
| 64 | 12 | 88 | 64 | 64 | 64 | 123 |
| 90 | 14 | 114 | 90 | 105 | 90 | 140 |
| 106 | 16 | 140 | 98 | 140 | 98 | 180 |
| 130 | 18 | 165 | 130 | 160 | 130 | 220 |
| 165 | 20 | 197 | 165 | 195 | 165 | 285 |
| 185 | 22 | 225 | 185 | 245 | 185 | 355 |
| 220 | 24 | 268 | 220 | 275 | 220 | 430 |
Luke Steel is a top manufacturer and supplier of high-quality Alloy Steel F12 Flanges products in Houstan, USA. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
Alloy Steel F12 Flanges are best suited for high-pressure and high-temperature applications. They find their usage in thermal processing units, oil refineries, petrochemical plants, and power plants. These flanges are essential components in heat exchangers, pressure vessels, steam pipelines, and boiler systems where corrosion resistance and toughness are the prime requirements. F12 flanges provide leak-free and safe connections in pipelines that transport hot gases and fluids. Owing to their strength and dependability, they are also used in chemical plants, offshore platforms, and industrial piping systems that are subject to hostile environments. Their high service life and resistance to temperature make them a choice for critical infrastructure.
