Luke Steel is a top-notch manufacturer and supplier located in Houston, Houstan, specializing in high-quality Alloy Steel Gr B16 Bolts designed for demanding industrial applications. We pride ourselves on our commitment to strength, durability, and reliability, ensuring our bolts meet rigorous international standards like ASTM A193 Grade B16. These bolts are engineered to thrive in high-pressure and high-temperature settings, making them perfect for critical roles in the power, petrochemical, oil & gas, and refinery industries. At Luke Steel, we blend cutting-edge manufacturing technology with strict quality control to provide Alloy Steel B16 bolts that guarantee secure and long-lasting fastening, even in the toughest conditions.
Our Alloy Steel Gr B16 Bolts are crafted from chromium-molybdenum-vanadium steel, featuring a typical composition that includes carbon (0.40–0.50%), manganese (0.75–1.00%), phosphorus (max 0.035%), sulfur (max 0.040%), silicon (0.15–0.35%), chromium (0.70–0.90%), molybdenum (0.40–0.60%), and vanadium (0.20–0.30%). These bolts boast a minimum tensile strength of 860 MPa and a yield strength of 690 MPa. Renowned for their exceptional strength, heat resistance, and creep resistance, B16 bolts are often heat-treated (quenched and tempered) to boost their mechanical performance under high temperatures and pressures, making them ideal for severe operating conditions.
| Specifications | : | ASTM A 193 ASME SA 193 |
| Standard | : | DIN, ASTM, BS and all International Standards |
| Length | : | 3 mm to B16 mm |
| Size | : | M3 – M56 | 3/6″ to 2″ | Custom Sizes |

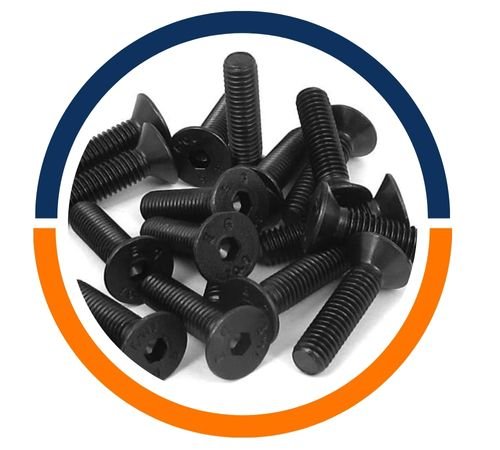

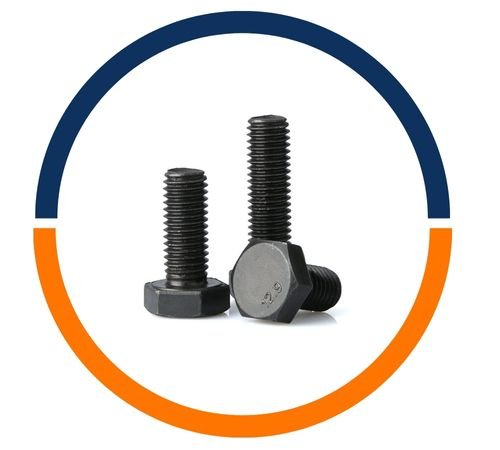

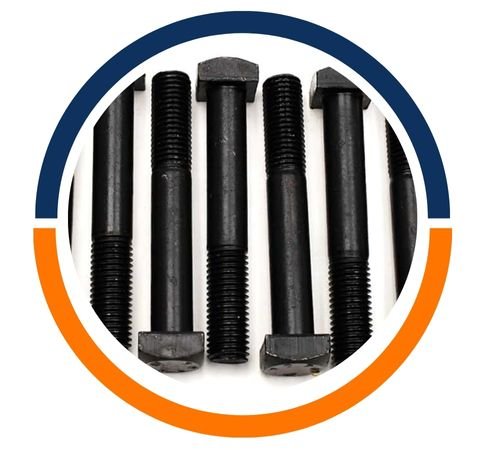

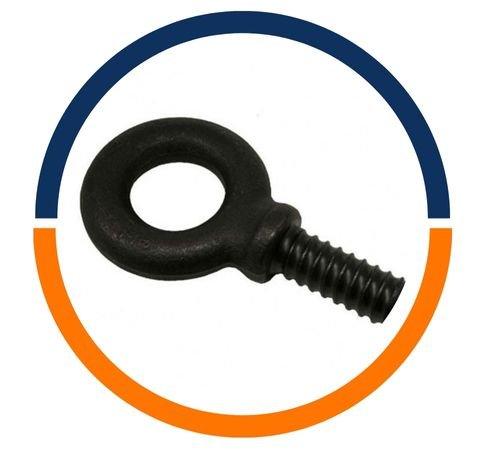

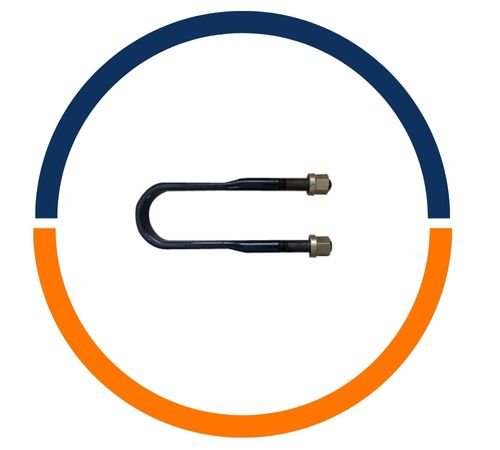

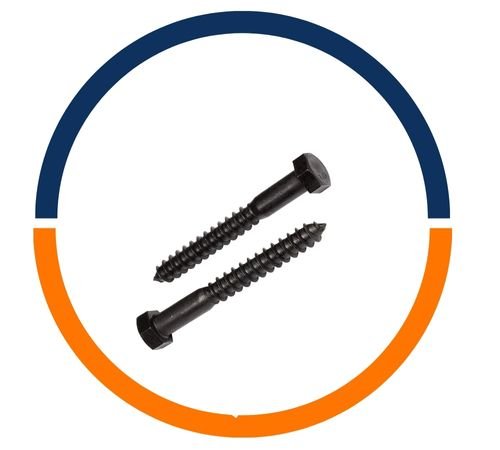

| Type | : | Hex Head Bolts, Square Bolts, U bolts, Eye bolts, T bolt, Hex Bolt, Lag Bolts, Counter sunk Bolts |
| Alloy Steel B16 | C | Mn | P | S | Si | Ni | Cr |
| 0.15 max | 1.00 max | 0.040 | 0.030 | 1.00 max | – | 11.50-13.50 |
| Grade | Size | Tensile ksi, min | Yield, ksi, min | Elong, %, min | RA % min |
|---|---|---|---|---|---|
| B16 | Up to 2-1/2 | 125 | 105 | 18 | 50 |
| 2-5/8 – 4 | 110 | 95 | 17 | 45 | |
| 4-1/8 – 7 | 100 | 85 | 16 | 45 |
| Dia | Minimum Temperature ° F (°C) | Tensile Strength min, ksi ( MPa) | Yield Strength. min, 0.2% offset, Ksi ( MPa) | Elongation in 4D min % | Reduction of Area min % | Hardness max |
|---|---|---|---|---|---|---|
| 2 1/2″ and under | 1200(650) | 125(860) | 105(725) | 18 | 50 | 321HB or 35 HRC |
| over 21/2″ to 4″ | 1200(650) | 110(760) | 95(655) | 17 | 45 | 302HB or 33 HRC |
| over 4″ to 7″ | 1200(650 ) | 100(690) | 85(586) | 16 | 45 | 227HB or 29 HRC |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trusted manufacturer and supplier of high-quality Alloy Steel Gr B16 Bolts in Houstan, USA. We specialize in premium steel products, including Alloy Steel, Carbon Steel, Mild Steel and Galvanized Steel, with a strong focus on Carbon Steel Sheet and Plates. Our extensive inventory also includes Pipes, Tubes, Flanges, Forged Fittings and Bars. Committed to fast delivery and exceptional customer service, we use only the finest raw materials to ensure superior strength, durability and performance for critical industrial applications. Contact us today for all your Alloy Steel Gr B16 Bolts needs!
Alloy Steel Gr B16 Bolts are essential in high-pressure and high-temperature applications where outstanding strength and stability are crucial. They find extensive use in sectors like oil & gas, petrochemical, chemical processing, power generation, and marine engineering. These bolts are perfect for securing flanges, valves, and pressure vessels in steam, gas, and water pipelines. Their ability to withstand thermal stress, oxidation, and mechanical fatigue makes them particularly well-suited for turbine systems, boiler plants, and refinery operations. The remarkable mechanical properties of Grade B16 bolts ensure dependable performance in critical infrastructure and safety-sensitive environments.
Luke Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Houstan, USA.
