Luke Steel is a leading distributor of Alloy Steel T1 Tubing from Houston, Houstan, offering high-strength tubing solutions for boiler, heat exchanger, and pressure system applications. T1 tubing, or ASTM A209 Grade T1, is a carbon-molybdenum alloy steel tube with high temperature resistance and superior mechanical propertiesOur T1 tubing, which is produced with stringent quality checksfinds extensive applications in thermal power stations and high-pressure systems. Luke Steel supplies tubes in a range of wall thicknesses and sizes to satisfy rigorous specifications in thermal fluid handling and high-stress applications.

Alloy Steel T1 Tubes Price In Houstan, Alloy Steel T1 Santiary Tube In United kingdom, T1 Alloy Steel Tubes In Houstan, Alloy Steel T1 Tubing Suppliers and Exporters in Los Angeles, Stockholder of ASTM A213 T1 Alloy Steel Tube In California, AS T1 Chrome Moly Tubing Supplier In Houston, T1 Alloy Steel Tubing In Houston, Alloy Steel T1 Tube In Houston, T1 Alloy Steel Tubing In California, Alloy Steel UNS K11597 Tube In Houstan, Alloy Steel Grade T1 Tubes Manufacturer in Houstan, USA.

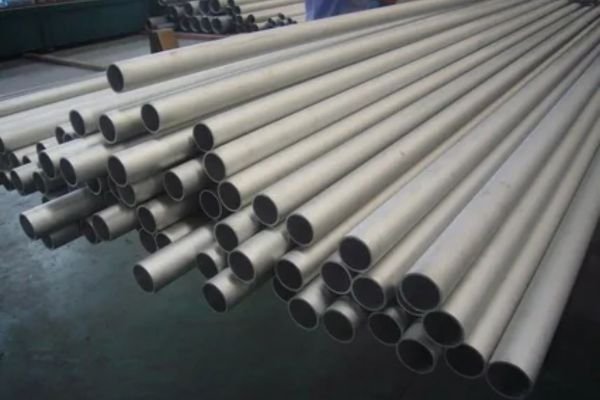

Alloy Steel T1 Tubes

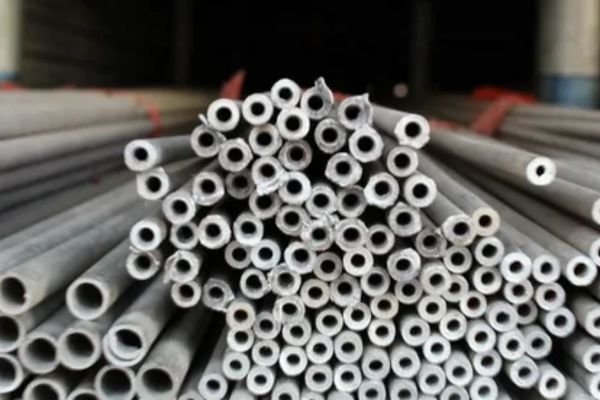

AS T1 Chrome Moly Tubing

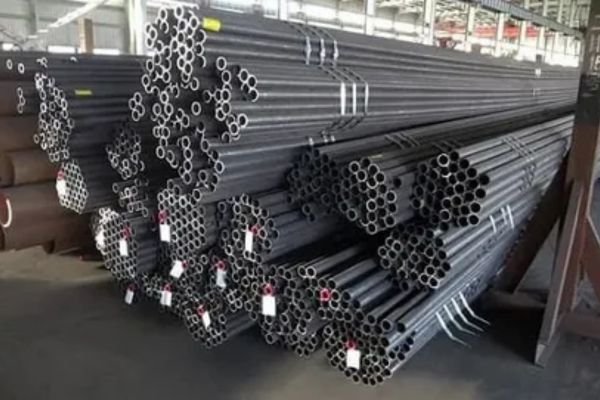

ASTM A213 T1 Alloy Steel Tubes

Table of Contents

ASTM A213 Alloy Steel Tubing In Houstan, Alloy Steel T1 Tubing In United kingdom, T1 Alloy Steel Tubes In Houstan, Alloy Gr. T1 Tubing In Los Angeles, Alloy Steel T1 Tubing In California, Alloy Steel T1 Tube In Houston, T1 Alloy Steel Tube In Houston, A213 Tubes In Houstan, Alloy Steel T1 Tube In Houstan, Alloy Steel A213 T1 Tube Manufacturer in Houstan, USA.

What is Alloy Steel T1 Tubing?

Alloy Steel T1 Tubing consists of 0.10–0.20% carbon, 0.27–0.63% manganese, and 0.44–0.65% molybdenum. It possesses tensile strength of 415–585 MPa and yield strength of 220 MPa. T1 tubing excels under high-temperature conditionswithstanding structural integrity and low oxidation. Molybdenum addition improves creep and thermal fatigue life. The tubes are seamless and normally normalized or tempered to enhance grain structure, ductility, and weldability. Their strength and heat resistance make them perfect for long-term service in pressure conditions.

Alloy Steel T1 Tubing Specifications

Alloy Steel T1 Seamless Tubes Specifications
Specifications : ASTM A/ASME SA213, A691
Dimensions : ASTM, ASME and API
Tubes Size : 1 / 2” OD up to 5” OD, customs diameters also available
Outer Diameter : 6-2500mm; WT:1-200mm
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / EFW / Fabricated
Form : Round, Square, Rectangular, Hydraulic Etc
Length : Single Random, Double Random & Cut Length.
End : Plain End, Beveled End, Treaded

Alloy Steel T1 Tubing Chemical Composition

Grade
C≤
Mn
P≤
S≤
Si≤
Mo
T1
0.10~0.20
0.30~0.80
0.025
0.025
0.10~0.50
0.44~0.65

Alloy Steel T1 Tubing Mechanical Properties

Grade Tensile Strength, MPa Yield Strength, MPa Elongation, % Hardness, HB
T1 415 min 205 min 30 min 163 max

If You Are Looking To Buy High Quality Pipes, Sheet, Fittings and Flanges

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Alloy Steel T1 Seamless Tube Outside Diameter and Tolerance

Outside Diameter OD Tolerance WT Tolerance Ovality Tolerance Cut Length Tolerance
OD≤ 12, 7 mm ± 0, 13 mm ± 15 % + 3, 18 mm, – 0 mm
12, 7 mm < OD ≤ 38, 1 mm ± 0, 13 mm ± 10 % max, 1, 65 mm + 3, 18 mm, – 0 mm
38, 1 mm < OD ≤ 88, 9 mm ± 0, 25 mm ± 10 % max, 2, 41 mm + 4, 76 mm, – 0 mm

Top Manufacturer and Supplier of Alloy Steel T1 Tubing in Houstan, USA

Jaxon Steel is a leading manufacturer and distributor of high-quality Alloy Steel T1 Tubing in Houstan, USA. We provide premium steel materials and a comprehensive range of products, including Alloy Steel, Carbon Steel, Mild Steel, and Galvanized Steel. Our extensive inventory features Tubes, Pipes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Dedicated to timely delivery and exceptional customer service, we use only the finest raw materials to ensure superior performance in industrial applications with stringent requirements. Contact us today for all your Alloy Steel T1 Tubing needs!

ASTM A213 Alloy Steel Tubing In Houstan, Alloy Steel T1 Tubing In United kingdom, T1 Alloy Steel Tubes In Houstan, Alloy Gr. T1 Tubing In Los Angeles, Alloy Steel T1 Tubing In California, Alloy Steel T1 Tube In Houston, T1 Alloy Steel Tube In Houston, A213 Tubes In Houstan, Alloy Steel T1 Tube In Houstan, Alloy Steel A213 T1 Tube Manufacturer in Houstan, USA.

Types of Alloy Steel T1 Tubing

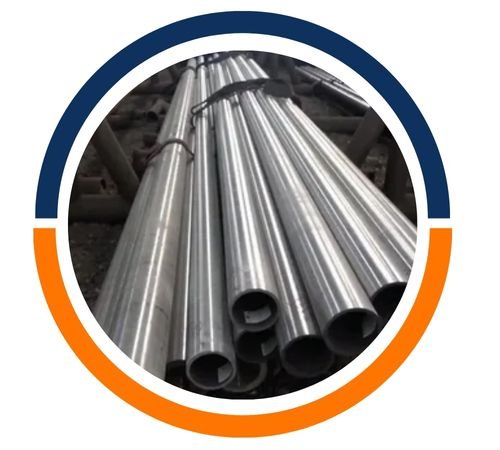

Alloy Steel T1 Tubing

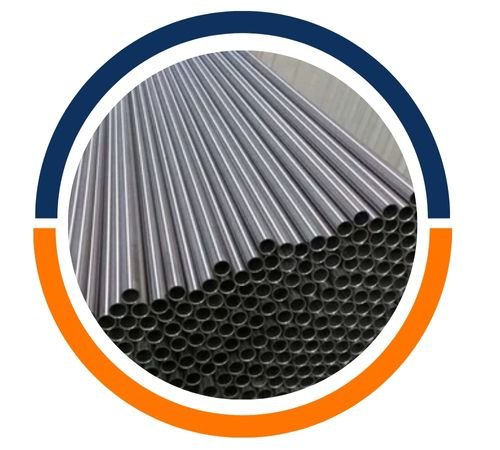

ASME SA213 Alloy Steel T1 Tubes
ASTM A213 Alloy Steel T1 Tubing

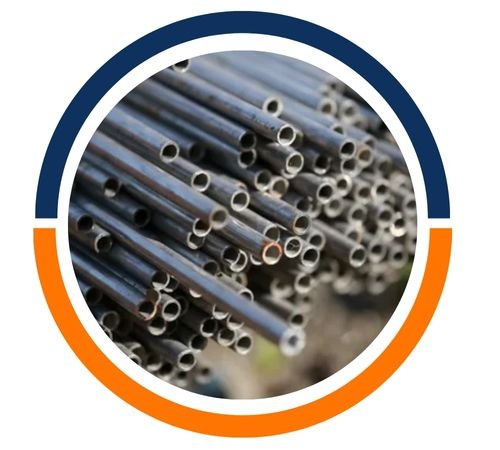

A213 T1 Tubes

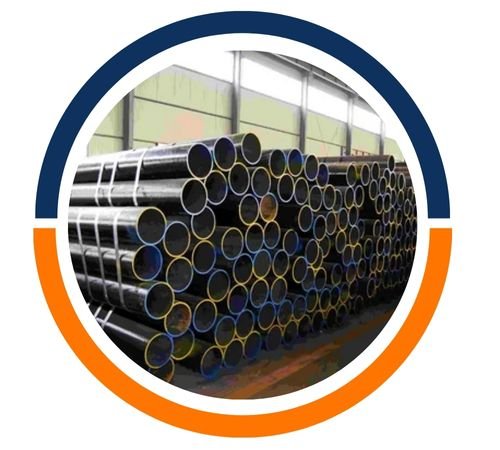

AS T1 Tubing
Alloy Steel A213 T1 Tubing

Alloy Steel T1 Tubes Price In Houstan, Alloy Steel T1 Santiary Tube In United kingdom, T1 Alloy Steel Tubes In Houstan, Alloy Steel T1 Tubing Suppliers and Exporters in Los Angeles, Stockholder of ASTM A213 T1 Alloy Steel Tube In California, AS T1 Chrome Moly Tubing Supplier In Houston, T1 Alloy Steel Tubing In Houston, Alloy Steel T1 Tube In Houston, T1 Alloy Steel Tubing In California, Alloy Steel UNS K11597 Tube In Houstan, Alloy Steel Grade T1 Tubes Manufacturer in Houstan, USA.

Uses of Alloy Steel T1 Tubing

Alloy Steel T1 Tubing has far-reaching applications in superheaters, reheaters, water wall panels, and economizers of power plants and boiler systems. It finds perfect application in the generation of steam and thermal fluid transfer in high-pressure and high-temperature processesAlloy Steel T1 Tubing finds applications in chemical refineries, petrochemical plants, and industrial heat recovery systems as well. T1 tubing resists cyclic thermal loads and corrosive environmentsproviding a long service life with minimal maintenance. Luke Steel provides tailor-made tubing sizes and lengths for maximum performance in thermal energy systems and fluid pressure management projects.
