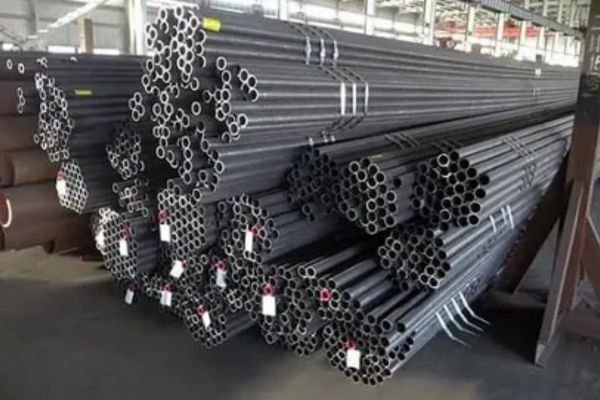

Luke Steel Suppliers and Manufacturers in Houston, Houstan, is a leading producer and supplier of Alloy Steel T22 Tubing for industrial applications at elevated temperatures. Our ASTM A213-grade T22 tubes are made from high-grade alloy materials and offer long service life withstanding thermal stress. We supply T22 tubes to different industries such as power generation, petrochemicals, and oil & gas. Through our state-of-the-art manufacturing techniques, rigorous quality assurance, and dedication to customer satisfaction, Luke Steel provides tubing solutions that consistently perform beyond expectations in demanding conditions.
Alloy Steel T22 Tubing contains major percentages of Chromium (1.9–2.6%) and Molybdenum (0.87–1.13%), along with traces of Carbon (max 0.15%), Manganese (0.30–0.60%), and Silicon (0.50–1.00%). It possesses superior resistance to high temperatures and creep. T22 tubing provides a minimum tensile strength of 415 MPa, yield strength of 205 MPa, and elongation of 30%. Normalizing and tempering heat-treat the alloy for outstanding performance in thermal cycling and high mechanical stress applications.
| ASTM A213 T22 Specification & Standard | ASTM A213 T22, ASME SA213 T22 (with IBR Test Certificate) |
|---|---|
| SA 213 Gr T22 Specification | ASTM A213 & ASTM A209 BS/3059/ 90/ Part II/ 620 & 622 DIN/ 17175/ 13CrMo44 DIN/ 17175/ 10CrMo910 DIN/ 17175/ 15Mo3 |
| T22 Steel Tube Sch. & Swg. | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg., 3.6 mm Thk |
| A213 T22 Tubing Size | 6.35 mm OD to 101.6 mm OD |
| ASTM A213 T22 Pipe Thickness | 3-12mm |
| ASME SA213 T22 Material Origin | European, Japanese, Korean, US, Russian, Indian (Strictly No Chinese Material) |
| Craft | Cold rolled and Cold drawn |
| ASTM A213 T22 Tube Type | Seamless / ERW / Welded / Fabricated |
| ASTM A213 Grade T22 Tube available in Form of | Round, Square, Rectangular, Hydraulic Etc. |
| A213 T22 Tube Tolerance | Cold drawn pipe: +/-0.1mm Cold rolled pipe: +/-0.05mm |
| ASME SA213 Gr T22 Tube Length | Standard Double & In Cut length also. |
| ASME SA213 T22 Tube End | Plain End, Beveled End, Treaded |
| ASTM A213 T22 Additional Testing | NACE MR 0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc. |
| Specialized in |
|
| ASME SA213 Gr T22 Tube Application & uses | Seamless Ferritic Alloy Steel Tube for High-Temperature Service |
| Grade | C≤ | Mn | P≤ | S≤ | Si≤ | Mo |
|---|---|---|---|---|---|---|
| SA213 T22 Composition | 0.05~0.15 | 0.30~0.60 | 0.025 | 0.025 | 0.50~1.0 | 0.80~1.13 |
| Grade | Tensile Strength, MPa | Yield Strength, MPa | Elongation, % | Hardness, HB |
|---|---|---|---|---|
| SA213 T22 Boiler Tube | 415 min | 205 min | 30 min | 163 max |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Outside Diameter | OD Tolerance | WT Tolerance | Ovality Tolerance | Cut Length Tolerance |
| OD≤ 12, 7 mm | ± 0, 13 mm | ± 15 % | – | + 3, 18 mm, – 0 mm |
| 12, 7 mm < OD ≤ 38, 1 mm | ± 0, 13 mm | ± 10 % | max, 1, 65 mm | + 3, 18 mm, – 0 mm |
| 38, 1 mm < OD ≤ 88, 9 mm | ± 0, 25 mm | ± 10 % | max, 2, 41 mm | + 4, 76 mm, – 0 mm |
Jaxon Steel is a leading manufacturer and distributor of high-quality Alloy Steel T22 Tubing in Houstan, USA. We provide premium steel materials and an extensive range of products, including Alloy Steel, Carbon Steel, Mild Steel, and Galvanized Steel. Our comprehensive inventory features Tubes, Pipes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Dedicated to timely delivery and exceptional customer service, we use only the finest raw materials to ensure outstanding performance in industrial applications with rigorous specifications. Contact us today for all your Alloy Steel T22 Tubing needs!
Alloy Steel T22 Tubing is used widely in industries requiring materials strong enough to resist high pressure and heat. Common uses are in superheaters, reheaters, heat exchangers, and boilers of power generation and chemical facilities. It is used in refinery units as well as industrial furnaces where high oxidation resistance is necessary. The tubing’s high mechanical strength and thermal conductivity qualify it for severe service in steam pipes and pressure vessels. T22 is trusted by engineers due to its dependability, long life, and thermal fatigue resistance in harsh industrial settings.
Luke Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Houstan, USA.
