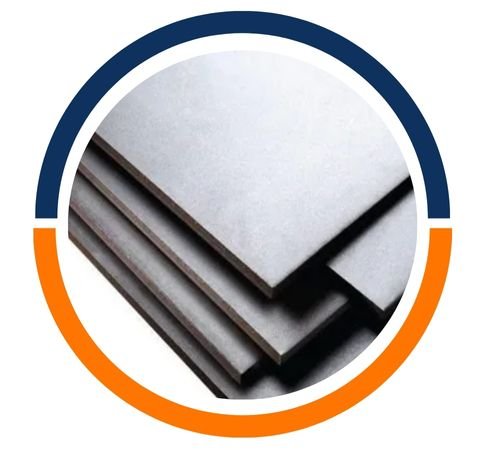

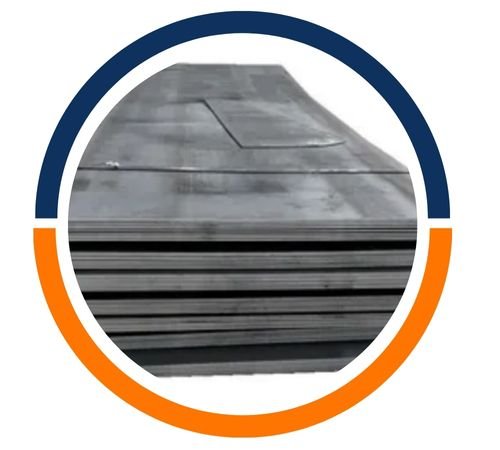

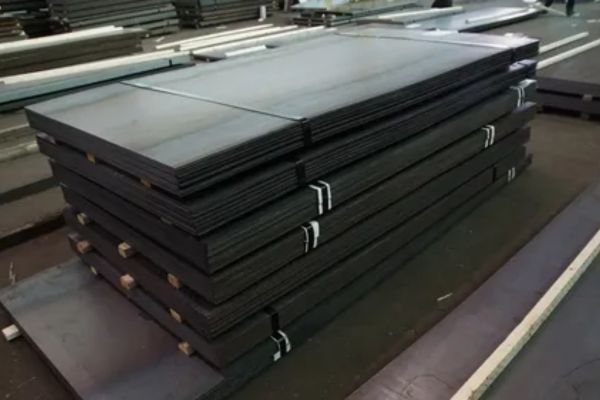

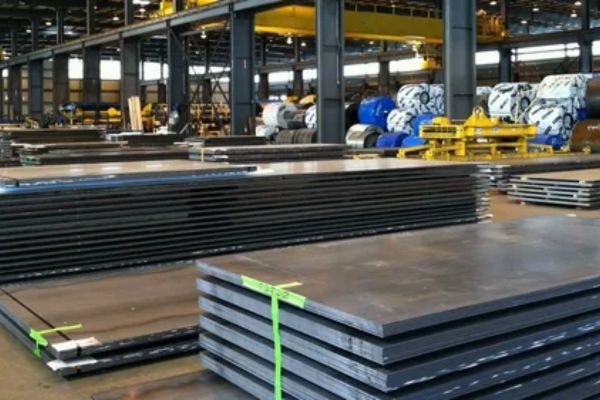

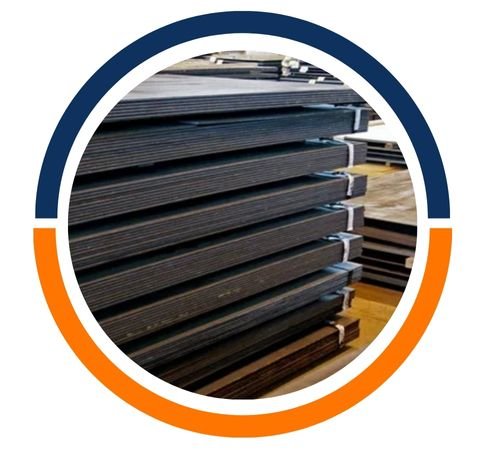

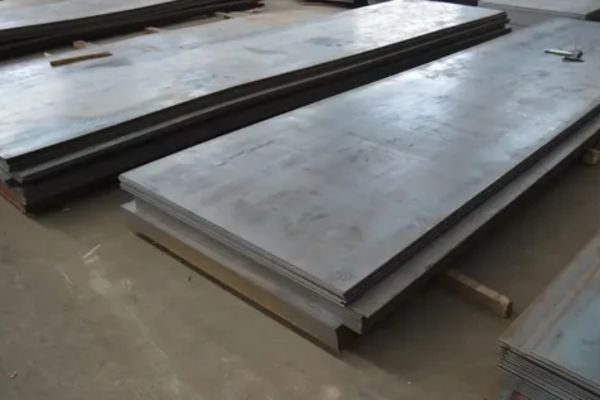

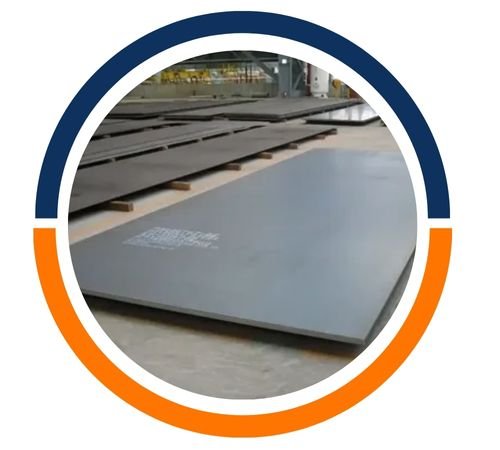

ASME SA 387 Grade 5 Class 1/2 Sheet and Plates are low alloy steel materials that contain between 4-6% chromium and 0.45-0.65% molybdenum, which significantly boost their ability to withstand high temperatures and resist corrosion. The carbon content is kept between 0.05% and 0.15%, along with controlled amounts of silicon, manganese, phosphorus, and sulfur. These plates are known for their impressive mechanical strength, boasting a tensile strength that ranges from 415 to 585 MPa and a yield strength starting at 240 MPa. Class 1 plates are recognized for their higher ductility, while Class 2 plates excel in tensile properties. They are commonly used in pressure vessels and heat exchangers, thanks to their reliability under thermal stress.
In the petrochemical, oil and gas, and power generation sectors, ASME SA 387 Grade 5 Class 1/2 Sheet and Plates are essential for high-temperature and high-pressure applications. These alloy steel plates are crucial for constructing boilers, heat exchangers, reactors, and pressure vessels due to their remarkable resistance to thermal fatigue and corrosion. Class 1 plates are typically selected for their formability and ductility, while Class 2 plates are favored in situations that demand higher tensile strength. Their excellent weldability and long-lasting durability make them vital for tough industrial settings that require consistent performance.
| Standard | ASTM A387 / ASME SA387 |
|---|---|
| Width | 1000mm-3000mm |
| Thickness | 1.0mm – 200mm |
| Production | Hot-Rolled (HR) / Cold-Rolled (CR) |
| Grade | C | Si | Mn | P | S | Cr | Mo |
| A387 GR.5 CL.1 | 0.15 max | 0.55 max | 0.25-0.66 max | 0.035 max | 0.035 max | 3.90-6.10 max | 0.40-0.70 max |
| Grade | A387 GR.5 CL.1 | |||
| A387 GR.5 CL.1 | Thickness mm | Yield Min Mpa | Tensile Mpa | Elongation Min % |
| t≦50 | 205 | 415-585 | 18 | |
| 50<t≦200 | – | – | – | |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trusted manufacturer and supplier of high-quality ASME SA 387 Grade 5 Class 1/2 Sheet and Plates in Houstan, USA. We specialize in premium steel products, including Alloy Steel, Carbon Steel, Mild Steel and Galvanized Steel, with a strong focus on Carbon Steel Sheet and Plates. Our extensive inventory also includes Pipes, Tubes, Flanges, Forged Fittings and Bars. Committed to fast delivery and exceptional customer service, we use only the finest raw materials to ensure superior strength, durability and performance for critical industrial applications. Contact us today for all your ASME SA 387 Grade 5 Class 1/2 Sheet and Plates needs!
Luke Steel stands out as a premier manufacturer and supplier of ASME SA 387 Grade 5 Class 1/2 Sheet and Plates, located in Houston, USA. We are dedicated to quality and precision, providing high-performance alloy steel plates that are perfect for demanding industrial uses. Our plates comply with international standards and offer exceptional resistance to heat and corrosion, making them ideal for applications in pressure vessels, boilers, and heat exchangers. At Luke Steel, we focus on customer satisfaction through prompt deliveries, competitive pricing, and customized solutions, confidently serving industries like oil and gas, petrochemical, and power generation.
