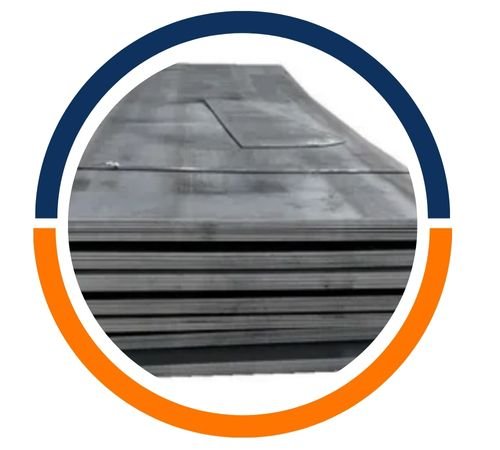

Luke Steel, a reputable manufacturer and supplier located in Houston, Houstan, is dedicated to providing top-notch Boiler Quality (BQ) Sheets and Plates designed to excel in high-pressure and high-temperature settings. Crafted from high-quality carbon steel and alloy materials, these plates meet ASME, ASTM, and various international standards. Renowned for their durability, weldability, and precise dimensions, Luke Steel’s BQ plates come in a range of thicknesses and sizes, making them perfect for boiler fabrication and pressure vessel applications. With a strong focus on quality and prompt delivery, Luke Steel caters to industries such as power generation, petrochemicals, and refineries.
Boiler Quality Sheets and Plates generally consist of carbon (0.20–0.30%), manganese (0.80–1.60%), silicon (≤0.50%), phosphorus (≤0.035%), and sulfur (≤0.035%), with variations based on the grade (like ASTM A516 Gr 60/70). These plates boast tensile strength between 415–620 MPa and yield strength from 240–310 MPa, providing excellent notch toughness and thermal stability. Their microstructure can be enhanced through normalizing or controlled rolling, which boosts their resistance to pressure-induced stress and high-temperature fatigue—making them ideal for critical pressure vessel manufacturing.
Standard:Â ASTM A516 / ASME SA 516 Gr 60 / 65/ 70
Width:Â 1000mm-4500mm
Thickness:Â 5mm-150mm
Length:Â 3000mm-18000mm
Supply Condition :Â As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement.
Impact tested : -52° C
Tempering:Â Notch toughness can be improved by quenched cooling from hot rolling or normalizing by the supplier. If such a faster cooling rate is agreed upon between purchaser and supplier then the steel is also to be tempered at 1200 F.
Applications :Â Used for weld fabrication of pressure vessels that require improved notch toughness for lower than ambient temperature service.
Process of Manufacturing :Â Hot-Rolled (HR)
| C | Mn | P max | S max | Si max | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
|  | t < 12.5 mm | 12.5mm < t =50mm | 50mm < t ≤ 100mm | 100mm < t ≤ 200mm | t < 200 mm | t < 12.5 mm | t 12s.5 mm | |||
| A516 Grade 55 | 0.18 | 0.2 | 0.22 | 0.24 | 0.26 | 06-09 | 0.55-0.98 | 0.035 | 0.035 | 0.15-0.4 |
| A516 Grade 60 | 0.21 | 0.23 | 0.25 | 0.27 | 0.27 | 06-09 | 0.85-1.2 | 0.035 | 0.035 | 0.15-0.4 |
| A516 Grade 65 | 0.24 | 0.26 | 0.28 | 0.29 | 0.29 | 0.85-1.2 | 0.85-1.2 | 0.035 | 0.035 | 0.15-0.4 |
| A516 Grade 70 | 0.27 | 0.28 | 0.3 | 0.31 | 0.31 | 0.85-1.2 | 0.85-1.2 | 0.035 | 0.035 | 0.15-0.4 |
| Â | Tensile Strength (ksi) | Tensile Strength (MPa) | Yield Strength (ksi) | Yield Strength (MPa) | Elongation in 200mm(%) | Elongation in 50mm(%) |
|---|---|---|---|---|---|---|
| A516 Grade 55 | 55-75 | 380-515 | 30 | 205 | 23 | 27 |
| A516 Grade 60 | 60-80 | 415-550 | 32 | 220 | 21 | 25 |
| A516 Grade 65 | 65-85 | 450-585 | 35 | 240 | 19 | 23 |
| A516 Grade 70 | 70-90 | 485-620 | 38 | 260 | 17 | 21 |
| Material # | EN 10028-2 | DIN 17155> | BS 1501 | ASTM | JIS G3115 |
|---|---|---|---|---|---|
| 1.0345 | P235GH | HI | 161 Gr. 360 / 164 Gr. 360 | A 285 Gr. C-A 414 Gr. C / A 516 Gr. 55 | SPV 24 |
| 1.0425 | P265GH | HII | 161 Gr. 400 / 164 Gr. 400 / 224 Gr. 400 | A 414 Gr. E / A 516 Gr. 60 | 　 |
| 1.0481 | P295GH | 17 Mn 4 | 224 Gr. 490 | A 414 Gr. F / A 516 Gr. 65 | SPV 32 |
| 1.0473 | P355GH | 19 Mn 6 | 　 | A 414 Gr. G | SPV 36 |
| 1.5415 | 16Mo3 | 15 Mo 3 | 1503 – 243 B | A 204 Gr. B | 　 |
| 1.7335 | 13CrMo4-5 | 13CrMo 4 4 | 620 Gr. 27 | A 387 Gr. 12 | 　 |
| 1.738 | 10CrMo9-10 | 10CrMo 9 10 | 622 Gr. 31 | A 387 Gr. 22 | 　 |
| 1.7383 | 11CrMo9-10 | 　 | 　 | 　 | 　 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Thickness mm | Size (Length x width) | Thickness mm | Size (Length x width) | Thickness mm | Size (Length x width) |
|---|---|---|---|---|---|
| 8 | 2055 x 12100 | ||||
| 3000 x 12000 | 2500 x 12000 | ||||
| 2500 x 12000 | 20 | 2055 x 12000 | 60 | 3000 x 6000 | |
| 3460 x 14000 | 3000 x 12000 | 65 | 3000 x 6000 | ||
| 3460 x 14000 | |||||
| 6 | 2055 x 12100 | 18 | 2055 x 12100 | 50 | 2055 x 8000 |
| 3000 x 12000 | 3000 x 12000 | ||||
| 2500 x 12000 | 2500 x 12000 | 3000 x 9000 | |||
| 3460 x 14000 | 55 | 3000 x 6000 | |||
| 12.5 | 2055 x 12100 | 4000 x 12000 | 90 | 3000 x 4000 | |
| 3460 x 14000 | 2500 x 12000 | ||||
| 3000 x 12000 | 25 | 2055 x 12000 | 100 | 3000 x 4000 | |
| 2500 x 12000 | |||||
| 4000 x 12000 | 3460 x 14000 | ||||
| 4000 x 12000 | |||||
| 10 | 2055 x 12100 | 4000 x 12000 | 70 | 3000 x 6000 | |
| 4000 x 12000 | 3000 x 12000 | 80 | 3000 x 6000 | ||
| 3000 x 12000 | 22 | 2055 x 12100 | 75 | 3000 x 6000 | |
| 2500 x 12000 | |||||
| 3460 x 14000 | 2500 x 12000 | ||||
| 3460 x 14000 | |||||
| 15 | 2055 x 12100 | 2500 x 12000 | |||
| 4000 x 12000 | 2500 x 10000 | ||||
| 3000 x 12000 | |||||
| 2500 x 12000 | 3000 x 10000 | ||||
| 3460 x 14000 | 40 | 2055 x 12000 | |||
| 3000 x 10000 | |||||
| 13 | 2055 x 12100 | ||||
| 3460 x 14000 | 4000 x 12000 | ||||
| 3000 x 12000 | 2500 x 12000 | ||||
| 2500 x 12000 | 30 | 2055 x 12000 | |||
| 4000 x 12000 | |||||
| 35 | 2055 x 12000 | ||||
| 16 | 2055 x 12100 | ||||
| 4000 x 12000 | |||||
| 3000 x 12000 | 2500 x 10000 | ||||
| 2500 x 12000 | 45 | 2055 x 8000 | |||
| 3460 x 14000 | 3000 x 9000 |
Boiler Quality Sheets and Plates are mainly utilized in the construction of boilers, heat exchangers, pressure vessels, storage tanks, economizers, and other thermal processing equipment. Sectors such as power plants, oil & gas, petrochemical, fertilizer, and shipbuilding depend on these plates for applications that demand resilience against high pressure and elevated temperatures. Their outstanding weldability and formability allow for easy fabrication into cylindrical or rectangular shapes, while their strength guarantees safe operation under varying thermal and pressure conditions. BQ plates are vital for maintaining structural integrity and safety in essential energy and process systems.
