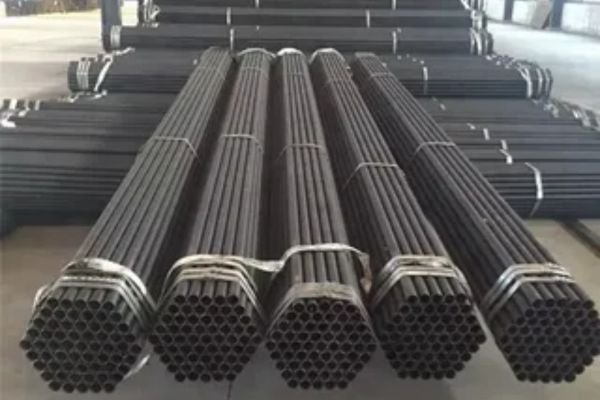

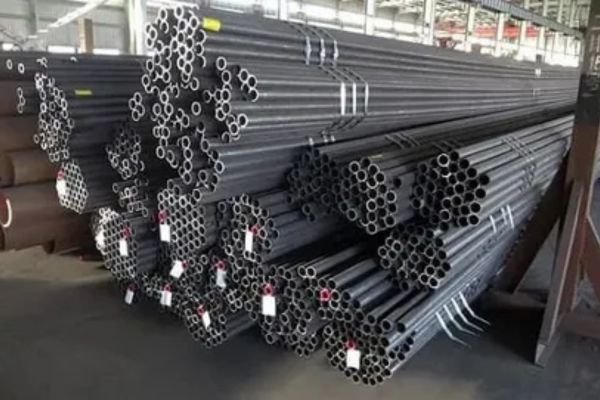

Luke Steel Manufacturer and Suppliers, Houston, Houstan, is a trusted supplier of superior quality Carbon Steel A192 Tubing. As a company renowned for producing precision-built steel products, Luke Steel produces seamless tubes that are made to withstand demanding industrial needs. Our A192 tubing is uniquely designed for boiler and superheater high-pressure service as well as heat exchanger service. We ensure compliance with ASTM standards and maintain a robust inventory to fulfill both standard and custom requirements. Customers trust us for timely deliveries, excellent customer support, and materials that exhibit exceptional strength, corrosion resistance, and durability across demanding applications in energy and industrial sectors.
Carbon Steel A192 Tubing is composed of carbon (max 0.18%), manganese (0.27–0.63%), phosphorus (max 0.035%), and sulfur (max 0.035%). The alloy is renowned for its high-pressure resistance, which suits it well for thermal conductivity. It has a minimum tensile strength of 325 MPa and a yield strength of 180 MPa, and an elongation of 35%. It is cold-drawn and heat-treated to achieve high strength, ductility, and resistance to thermal stress. The tubing complies with ASTM A192/A192M standards and is subjected to intensive testing for mechanical integrity.
| Craft | Cold rolled and Cold drawn |
| Standards | ASTM, ASME and API |
| Length | Min 3 Meters, Max18 Meters, or according to customer’s requirement |
| Thickness | 3-12mm |
| Schedules | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
| Type | Seamless / ERW / Welded / Fabricated |
| Tolerance | Cold drawn pipe: +/-0.1mm
Cold rolled pipe: +/-0.05mm |
| Additional Testing | NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc. |
| Form | Round, Hydraulic Etc |
| Origin | European, Japanese, Korean, US, Russian, Indian (Strictly No Chinese Material) |
| End | Plain End, Beveled End, Treaded |
| Specialized in | Large Diameter ASTM A192 Pipe |
| Size | 1/2” NB to 36” NB |
|
C, % |
Mn, % |
Si, % |
P, % |
S, % |
|
0.06-0.18 |
0.27-0.63 |
0.25 max |
0.035 max |
0.035 max |
|
Tensile Strength , MPa |
Yield Strength , MPa |
Elongation, % |
Hardness, HB, WT≥5.1mm |
Hardness, HRB, WT＜5.1mm |
|
325 min |
180 min |
35 min |
137 max |
77 max |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a leading manufacturer and distributor of high-quality Carbon Steel A192 Tubing in Houstan, USA. We offer premium steel materials and a diverse range of products, including Alloy Steel, Carbon Steel, Mild Steel, and Galvanized Steel. Our extensive inventory features Tubes, Pipes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Committed to fast delivery and exceptional customer service, we source top-grade raw materials to ensure superior strength and durability for demanding industrial applications. Contact us today for all your Carbon Steel A192 Tubing needs!
|
Hot rolled |
Outside Diameter, mm |
Tolerance, mm |
|
OD≤101.6 |
+0.4/-0.8 |
|
|
101.6＜OD≤177.8 |
+0.4/-1.2 |
|
|
Cold Drawn |
Outside Diameter, mm |
Tolerance, mm |
|
OD＜25.4 |
±0.10 |
|
|
25.4≤OD≤38.1 |
±0.15 |
|
|
38.1＜OD＜50.8 |
±0.20 |
|
|
50.8≤OD＜63.5 |
±0.25 |
|
|
63.5≤OD＜76.2 |
±0.30 |
|
|
76.2≤OD≤101.6 |
±0.38 |
|
|
101.6＜OD≤177.8 |
+0.38/-0.64 |
|
|
Hot rolled
|
Outside Diameter, mm |
Tolerance, % |
|
OD≤101.6, WT≤2.4 |
+40/-0 |
|
|
OD≤101.6, 2.4＜WT≤3.8 |
+35/-0 |
|
|
OD≤101.6, 3.8＜WT≤4.6 |
+33/-0 |
|
|
OD≤101.6, WT>4.6 |
+28/-0 |
|
|
OD>101.6, 2.4＜WT≤3.8 |
+35/-0 |
|
|
OD>101.6, 3.8＜WT≤4.6 |
+33/-0 |
|
|
OD>101.6, WT>4.6 |
+28/-0 |
|
|
Cold Drawn
|
Outside Diameter, mm |
Tolerance, % |
|
OD≤38.1 |
+20/-0 |
|
|
OD>38.1 |
+22/-0 |
Carbon Steel A192 Tube is mostly employed in high-pressure settings where heat transfer and steam production are vital. Power plants, refineries, and chemical companies are commonly equipped with this tubing, which is perfectly suited for boiler tubes, superheater tubes, and condensers. With superior thermal conductivity and strength, it is well suited for the severe conditions of heat and pressure. A192 tubing is also utilized in industrial heaters and shipbuilding boilers. Its structural integrity under stress and corrosion resistance guarantee long term performance and thus it is a favorite among engineers who work on efficient and long-lasting thermal systems.
Luke Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Houstan, USA.
