Carbon Steel DIN 2440 Pipe Manufacturer and Supplier in Houstan, USA

Carbon Steel DIN 2440 Pipe

Worldwide Shipping

Largest
Inventory

Modern
Equipments

Expert
Engineers

Efficient Factories

Well
Maintained

Luke Steel, based in Houston, Houstan, is a reliable manufacturer and supplier of Carbon Steel DIN 2440 Pipes, offering strong and dependable pipe solutions for both general and industrial fluid transport needs. Committed to upholding German standards, Luke Steel provides welded carbon steel pipes that are recognized for their consistent wall thickness, smooth surface finish, and excellent weldability. With a focus on quality, a wide range of stock, and timely deliveries, Luke Steel caters to the plumbing, water supply, structural, and engineering sectors, making them a go-to partner for affordable and durable carbon steel piping solutions across North America.

CS DIN 2440 Pipes Exporter in Houstan, Carbon Steel DIN 2440 Pipe Price List in Houstan, Carbon Steel DIN 2440 Pipes Supplier in California, Carbon Steel DIN 2440 Pipe Exporter in Los Angeles, Carbon Steel DIN 2440 Pipes Exporter in Houston, CS DIN 2440 Pipes Size Chart, Carbon Steel DIN 2440 Pipe Price in Houston, Carbon Steel DIN 2440 Pipes Weight Chart, CS DIN 2440 Pipes Thickness, Carbon Steel DIN 2440 Pipe Supplier in Texas, Carbon Steel DIN 2440 Pipes Stockist in California

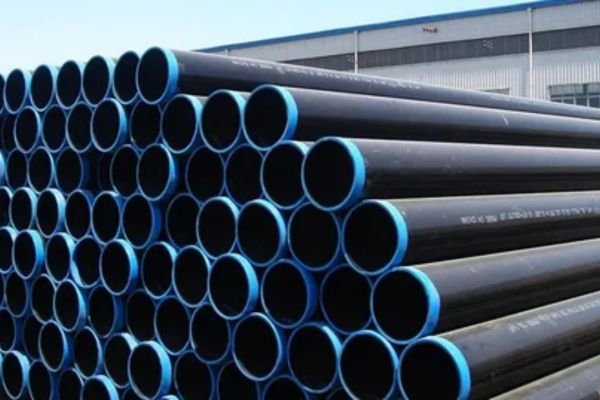

Carbon Steel DIN 2440 Seamless Pipes

Carbon Steel DIN 2440 Welded Pipes

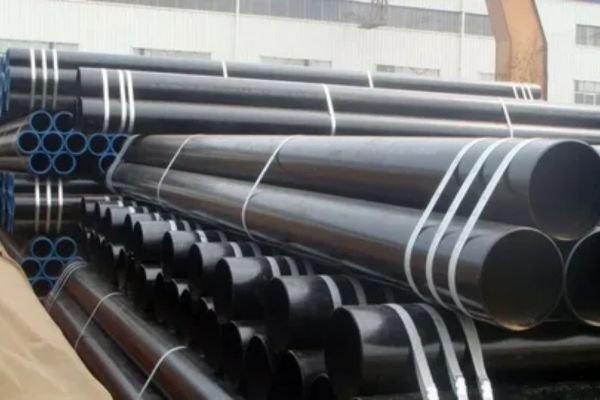

Carbon Steel DIN 2440 EFW Pipes

What is Carbon Steel DIN 2440 Pipe?

Carbon Steel DIN 2440 Pipes are crafted from mild to medium carbon steels, typically containing up to 0.20% carbon and up to 1.20% manganese, which ensures good ductility and weldability. These pipes boast tensile strengths between 340–520 MPa and yield strengths around 195–235 MPa, depending on the specific grade and manufacturing process. They offer moderate elongation and solid toughness, featuring uniform wall thickness and smooth internal surfaces. Their composition and mechanical properties make them ideal for low to medium pressure fluid transport, general structural applications, and light mechanical fabrication.

Carbon Steel DIN 2440 Pipe Exporter in Houstan, Carbon Steel DIN 2440 Pipe Price List in Houstan, CS DIN 2440 Pipes Supplier in California, Carbon Steel DIN 2440 Pipes Exporter in Los Angeles, Carbon Steel DIN 2440 Pipe Exporter in Houston, Carbon Steel DIN 2440 Pipe Size Chart, Carbon Steel DIN 2440 Pipes Price in Houston, Carbon Steel DIN 2440 Pipe Weight Chart, Carbon Steel DIN 2440 Pipe Thickness, CS DIN 2440 Pipes Supplier in Texas, Carbon Steel DIN 2440 Pipes Stockist in California

Carbon Steel DIN 2440 Pipe Chemical Composition

Steel Grade	C	Si	Mn	Cr	Ni	Mo
St 33	It is not normalized

Carbon Steel DIN 2440 Pipe Mechanical Properties

Steel Grade	Tensile Strength,N/mm2(min)	Yield Strength,N/mm2(min)	Elongation, % (min)
St 33.2	290 – 310	185	18

DIN 2440 Steel Pipes Sizes

DIN 2440
	DN	Zoll	d	s	kg/m
					schwarz	verzinkt
	8	1/4	13.5	2.35	0.65	0.68
	10	3/8	17.2	2.35	0.85	0.89
	15	1/2	21.3	2.65	1.22	1.27
	20	3/4	26.9	2.65	1.58	1.65
	25	1	33.7	3.25	2.44	2.55
	32	1 1/4	42.4	3.25	3.14	3.28
	40	1 1/2	48.3	3.25	3.61	3.77
	50	2	60.3	3.65	5.10	5.33
	65	21/2	76.1	3.65	6.51	6.80
	80	3	88.9	4.05	8.47	8.85
	100	4	114.3	4.5	12.10	12.64

If You Are Looking To Buy High Quality Pipes, Sheet, Fittings and Flanges

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Top Manufacturer and Supplier of Carbon Steel DIN 2440 Pipe in Houstan, USA

Jaxon Steel is a trusted manufacturer and supplier of high-quality Carbon Steel DIN 2440 Pipe products in Houstan, USA. Specializing in premium steel materials, we offer an extensive range of products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our diverse selection includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. With a commitment to dependable delivery and exceptional customer service, Jaxon Steel ensures the supply of superior materials that provide outstanding performance across various industrial applications. Trust Jaxon Steel for all your Carbon Steel DIN 2440 Pipe requirements.

Dimension Standard of DIN 2440 Pipes

Nominall Width>	Conn- ecting nomin- al width of the flttings according to DIN 2950 and DIN 2980	Whit- worth- pipe threads according to DIN 2999 Part1	Tube				Screw thread					Corresponding socket according to DIN 2986
			Outside diameterd1	Wall thick- nesss	Weight		Theo- retical screw thread diameter d2	Threads per 25.4mm	Usable screw thread length J min at a max.	Distance of screw thread dlameter d2 from tube end		Outside diameter	Length
			Outside diameterd1	Wall thick- nesss	Plain-end tube kg/m	socketed tubekg/m	Theo- retical screw thread diameter d2	Threads per 25.4mm	Usable screw thread length J min at a max.	a max.	a min.	min.	min.
6	1/8	R 1/8	10.2	2.0	0.407	0.410	9.728	28	7.4	4.9	3.1	14	17
8	1/4	R 1/4	13.5	2.35	0.650	0.654	13.157	19	11.0	7.3	4.7	15.4	25
10	3/8	R 3/8	17.2	2.65	0.852	0.858	16.662	19	11.4	7.7	5.1	21.3	26
15	1/2	R 1/2	21.3	2.65	1.22	1.23	20.955	14	15.0	10.0	6.4	26.4	34
20	3/4	R 3/5	26.9	2.65	1.58	1.59	26.441	14	16.3	11.3	7.7	31.8	36
25	1	R 1	33.7	3.25	2.44	2.46	33.249	11	19.1	12.7	8.1	39.5	43
32	1 1/4	R 1 1/4	42.4	3.25	3.14	3.17	41.910	11	21.4	15.0	10.4	48.3	48
40	1 1/2	R 1 1/2	48.3	3.25	3.61	3.64	47.803	11	21.4	15.0	10.4	54.5	48
50	2	R 2	60.3	3.65	5.10	5.17	59.614	11	25.7	18.2	13.6	66.3	56
65	2 1/2	R 2 1/2	76.1	3.65	6.51	6.63	75.184	11	30.2	21.0	14.0	82	65
80	3	R 3	88.9	4.05	8.47	8.64	87.884	11	33.3	241	17.1	95	71
100	4	R4	114.3	4.5	12.1	12.4	113.030	11	39.3	28.9	21.9	122	83
125	5	R 5	139.7	4.85	16.2	16.2	138.430	11	43.6	32.1	25.1	147	92
150	6	R 6	165.1	4.85	19.2	19.8	163.830	11	43.6	32.1	25.1	174	92
1) Referred to an average length of 6m

Carbon Steel DIN 2440 Pipe Supplier in Houstan, Carbon Steel DIN 2440 Pipes Exporter in California, CS DIN 2440 Pipes Sizes in mm, Carbon Steel DIN 2440 Pipes Manufacturer in Los Angeles, Carbon Steel DIN 2440 Pipes Price List in Texas, CS DIN 2440 Pipes Distributor in Houston, Carbon Steel DIN 2440 Pipes in Houston, Carbon Steel DIN 2440 Pipe Supplier in Los Angeles, Carbon Steel DIN 2440 Pipe Distributor in USA

Types of Carbon Steel DIN 2440 Pipe

Carbon Steel DIN 2440 Pipe Supplier in Houstan, CS DIN 2440 Pipes Exporter in California, Carbon Steel DIN 2440 Pipe Manufacturer in Los Angeles, Carbon Steel DIN 2440 Pipes Price List in Texas, Carbon Steel DIN 2440 Pipe Distributor in Houston, Carbon Steel DIN 2440 Pipe in Houston, CS DIN 2440 Pipes Supplier in Los Angeles, Carbon Steel DIN 2440 Pipes Distributor in Houstan, Carbon Steel DIN 2440 Pipe Sizes in mm

Uses of Carbon Steel DIN 2440 Pipe

Thanks to their robustness and cost-effectiveness, these pipes are widely utilized across different industries. Carbon Steel DIN 2440 Pipes are ideal for water supply networks, gas distribution systems, HVAC infrastructure, and fire-fighting pipelines. In the construction sector, they’re often used for scaffolding and internal plumbing. Their importance in the oil and gas industry cannot be overstated, as they are essential for transporting gases and liquids under moderate pressure. Additionally, they find their place in mechanical, automotive, and general engineering fields, where strength and versatility are crucial. Their ease of welding and threading further enhances their broad applicability.
