Based in Houston, Houstan, Luke Steel is a top producer and supplier of Carbon Steel EN-8 Bars, providing high-performance steel solutions to a variety of industries. Luke Steel is renowned for their dedication to quality and client satisfaction, producing EN-8 bars that satisfy exacting national and international requirements. Medium-strength carbon steel EN-8 is renowned for its exceptional tensile strength, machinability, and wear resistance. Luke Steel is a trusted supplier of EN-8 carbon steel bar solutions, offering a steady, dependable supply supported by knowledgeable assistance and prompt delivery, making it the perfect choice for precision engineering, automotive and industrial applications.
Carbon Steel EN-8 Bars are medium-carbon steel bars that typically contain 0.35–0.45% carbon, 0.60–1.00% manganese, up to 0.10–0.35% silicon, and trace amounts of phosphorus and sulphur. These bars have a yield strength of about 450 MPa and a tensile strength of 550–700 MPa. EN-8 steel is appropriate for parts needing high strength and wear resistance because of its good ductility and shock resistance. The material offers exceptional machinability for precision engineering applications and can be heat-treated to improve mechanical qualities like hardness and toughness.
| Grade | EN-8 Carbon Steel Round Bar |
|---|---|
| Square bar size | 4 to 100mm |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Hex Bar size | 2-100mm A/F |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Section | 3.0 to 12.0mm thickness |
| size | Diameter: 3-~800mm |
| Billet Size | 1/2″ to 495mm Diameter |
| Standard Dimensions | Diameter / Height: EN-8 Round Bar Rod and Bar Sizes : 0.5 inches / 0.625 inches / 0.75 inches / 0.875 inches / 1.0 inches / 1.125 inches / 1.25 inches / 1.375 inches / 1.5 inches / 1.75 inches / 2.0 inches / 2.25 inches / 2.5 inches / 2.75 inches / 3.0 inches / 3.25 inches / 3.5 inches / 3.75 inches / 4.0 inches / 4.25 inches / 4.5 inches / 5.0 inches / 5.25 inches / 5.5 inches / 6.0 inches / 7.0 inches / 8.0 inches / 9.0 inches. |
| Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |

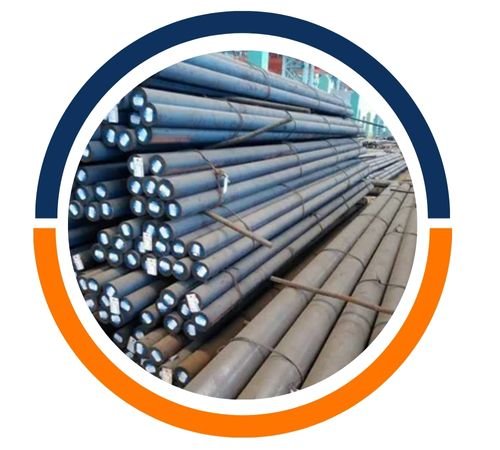

| Technique | EN-8 Round Bar Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |

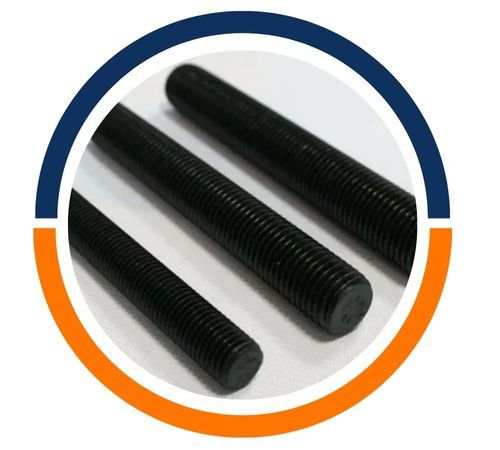

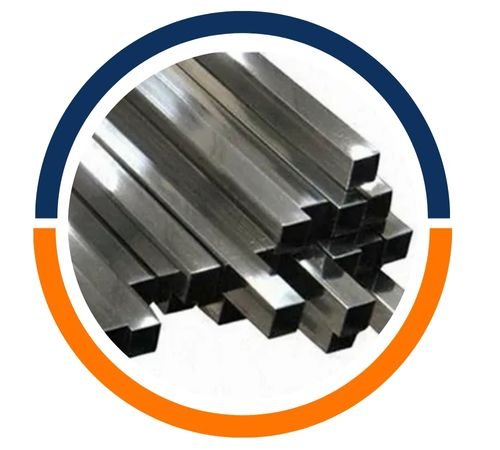

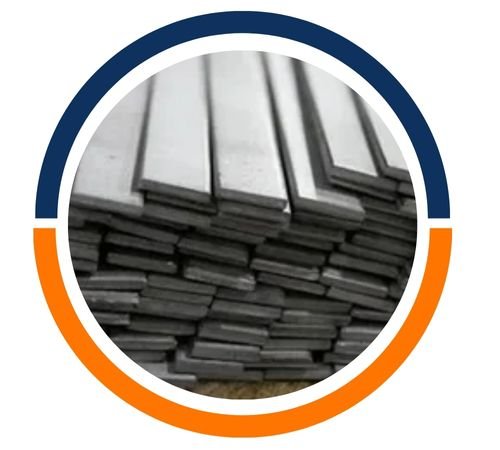

| Form | EN-8 Round Bar Round, Rod, T-Bar, EN-8 steel Channel Bar, Precision Ground Bar, EN-8 Carbon Steel Flat Bar, Carbon Steel EN-8 Square Bar, CS EN-8 Blocks, EN-8 Round Rod, EN-8 CS Rings, EN 8 Steel Hollow, EN 8 Steel Grade Triangle, Rectangle, Hex (A/F), CS EN-8 Threaded, Half Round Bar, Profiles, Steel Grade EN 8 Billet, EN-8 steel Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Silicon | 0.10-0.40% |
| Carbon | 0.36-0.44% |
| Manganese | 0.60-1.00% |
| Sulphur | 0.050 Max |
| Phosphorus | 0.050 Max |
| Chromium | – |
| Molybdenum | – |
| Nickel | – |
| BRITISH BS 970:1991 | 080M40, 080A42 |
| BRITISH BS 970:1955 | EN8, EN8D |
| AISI / ASTM A29 | 1038, 1040, 1045 |
| DIN Werkstoff No. | 1.0511, 1.1186, 1.1189 |
| BS & DIN European | C40, CK40, C45, CK45 |
| JIS G4051 | S40C, S45C |
| AISI / SAE | 1040, 1042 |
| EN | EN8 |
| BS | 080A40 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Size Chart in Milimeter | Weight Chart (Kilogram/meter) | Size Chart in Milimeter | Weight Chart (Kilogram/meter) | Size Chart in Milimeter | Weight Chart (Kilogram/meter) |
|---|---|---|---|---|---|
| 7 x 7 | 0.337 | 19 x 19 | 2.479 | 38 x 38 | 9.916 |
| 8 x 8 | 0.44 | 20 x 20 | 2.747 | 40 x 40 | 10.988 |
| 9 x 9 | 0.556 | 21 x 21 | 3.029 | 42 x 42 | 12.114 |
| 10 x 10 | 0.687 | 22 x 22 | 3.324 | 45 x 45 | 13.906 |
| 11 x 11 | 0.831 | 24 x 24 | 3.956 | 48 x 48 | 15.822 |
| 12 x 12 | 0.989 | 25 x 25 | 4.292 | 50 x 50 | 17.168 |
| 13 x 13 | 1.161 | 26 x 26 | 4.642 | 53 x 53 | 19.29 |
| 14 x 14 | 1.346 | 28 x 28 | 5.384 | 55 x 55 | 20.774 |
| 15 x 15 | 1.545 | 30 x 30 | 6.181 | 60 x 60 | 24.723 |
| 16 x 16 | 1.758 | 32 x 32 | 7.032 | 65 x 65 | 29.015 |
| 17 x 17 | 1.985 | 34 x 34 | 7.939 | 70 x 70 | 33.65 |
| 18 x 18 | 2.225 | 36 x 36 | 8.9 | 75 x 75 | 38.629 |
Industries requiring materials with medium strength and high toughness frequently use carbon steel EN-8 bars. Shafts, axles, gears, studs, bolts, and connecting rods are among the common parts used in the general engineering and automotive industries. Because of its exceptional wear resistance and machinability, EN-8 is perfect for parts that are subjected to moderate stress and impact. It is employed in the construction sector to fabricate structural components and machinery parts. The steel can be heat-treated, which makes it appropriate for parts that require higher performance and hardness. Because of its strength and adaptability, EN-8 is a dependable option for a variety of industries.
