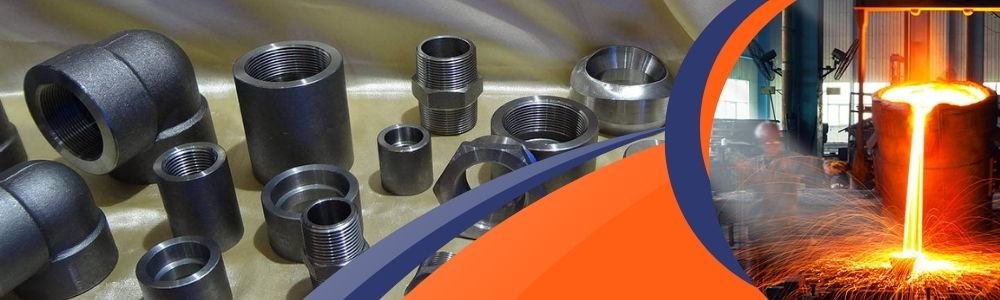

Luke Steel provides high-strength F80 Forged Carbon Steel Fittings, which are made in Houston, Houstan, for severe service conditions. Being a top-class supplier, we deal in fittings designed to perform well under extreme pressure and temperature conditions. These forged fittings are precision-made and quality-tested to adhere to international specifications. Our F80 fittings are extensively used in energy, oil & gas, and chemical sectors and provide unbeatable strength and leak-tightness. Luke Steel‘s insistence on superior quality, innovation, and customer satisfaction makes us your go-to partner for carbon steel solutions in mission-critical industrial applications.
Carbon Steel F80 Forged Fittings consist of approximately 0.28% carbon, 1.50% manganese, and trace amounts of phosphorus and sulfur, all balanced to create utmost strength. These fittings have a minimum yield strength of 550 MPa and tensile strength exceeding 620 MPa, making them appropriate for ultra-high pressure conditions. F80 is heat-treated for enhanced impact toughness, hardness, and fatigue resistance. The material has excellent weldability and formability, suited for intricate pipeline systems. Its mechanical and chemical characteristics provide durability, structural integrity, and reliable performance in the most strenuous industrial applications.
Standard : ASTM A694 / ASME SA 694
Dimensions : ASME/ANSI 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8″ NB to 4″ NB
Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.
| Grade | C | Si | Mn | P | S | Mo | Ni | Cr | Cu | V | Nb |
| F80 | 0.17-0.23 | 0.15-0.40 | 1.30-1.60 | ≤ 0.025 | ≤ 0.015 | 0.45-0.65 | ≤ 0.30 | ≤ 0.30 | ≤ 0.25 | – | 0.025~0.050 |
| Grade | Yield Strength, Min (KSI ) | Tensile Strength, Min (KSI) |
| A694 | 65 | 77 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| ASME B16.11 | Factory-Made Wrought Socketweld Fittings | CS F80 Forged Screwed Elbows, Street Elbow, Carbon Steel F80 Screwed Unequal Tee, Steel Straight Tee, Carbon Steel F80 Reducing Coupling, Carbon Steel F80 Hex Plug, Forged Straight Tees, Socket Weld Pipe Cap, Forged Pipe Cap, Equal Crossess, CS F80 Threaded Bushing, Carbon Steel F65 Screwed Caps, Swedge Nipples |
| MSS-SP-79 | standard Practice covers ratings, tolerances, finish, dimensions, marking and material requirements for socket-welding | Carbon Steel F80 Barrel Nipples, CS F80 Forged Threaded Boss, Carbon Steel F80 Forged Hex Head Bull Plugs |
| MSS-SP-83 | Forged and Fabricated Socket-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Carbon Steel F80 High Quality Socket weld 90° Elbow, Straight and Reducing-on-the-Tees, Forged 45° Short Radius Elbow, CS F80 caps, 3000LB Socket Weld Cross |
| MSS-SP-95 | Integrally Reinforced Forged Fittings – Socket Welding, Threaded, and Buttwelding Ends | CS F80 Socket weld Long Radius 90 Degree Elbows, Reducing Nipple, Socketweld Bushing, Threaded Plug, End Pipe caps, Carbon Steel F80 Coupling |
Carbon Steel F80 Forged Fittings are used in high-pressure oil & gas pipelines, offshore platforms, power plants, and refineries due to their high tensile and yield strength, making them suitable for subsea and deep well applications. F80 fittings are also used in chemical processing and high-load fluid transportation systems due to their resistance to corrosion and pressure. They guarantee safe and reliable operation in hostile environments. Luke Steel offers F80 forged fittings for industry applications demanding strong, lasting connections. Their flexibility and resistance to extreme mechanical and thermal stress make them an indispensable element in energy infrastructure.
Luke Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Houstan, USA.
