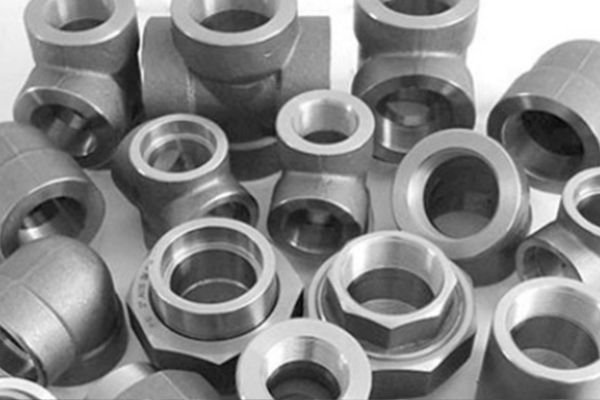

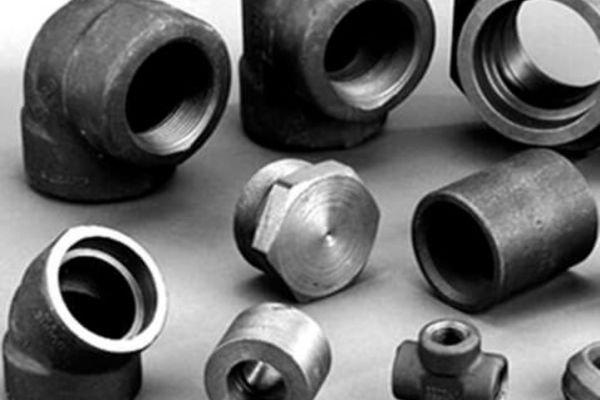

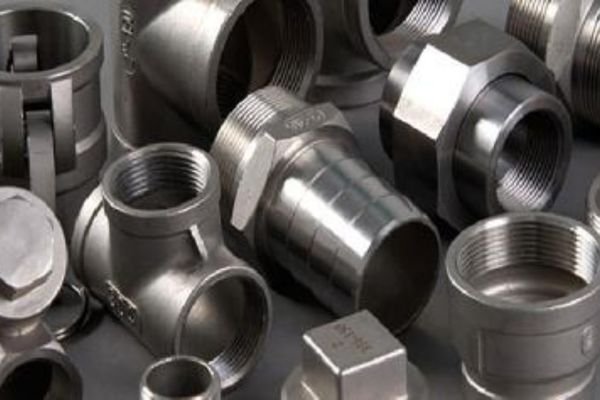

Luke Steel is a reputable manufacturer and supplier of Carbon Steel Forged Socket Weld Pipe Fittings, proudly based in Houston, USA. Known for their precision engineering and unwavering product quality, Luke Steel serves a diverse array of industrial clients, providing dependable solutions for high-pressure and high-temperature piping systems. Their socket weld fittings are crafted for tight, leak-free connections and are produced in line with international standards. By merging advanced forging techniques with rigorous quality control, Luke Steel guarantees that its fittings meet the rigorous demands of industries like oil and gas, petrochemicals, and power generation.
When it comes to Carbon Steel Forged Socket Weld Pipe Fittings, they are primarily constructed from materials such as ASTM A105, which mainly includes carbon (up to 0.35%), manganese, phosphorus, sulfur, and silicon. This specific composition ensures impressive mechanical strength and durability. Typically, these fittings boast a tensile strength of around 485 MPa and a yield strength of about 250 MPa, along with excellent ductility, hardness, and impact resistance. The forging process significantly enhances their structural integrity, enabling them to perform reliably under high pressure and temperature conditions.
| Specifications | ASTM A105 | A350 LF2 | A694 | A350 LF3 |
|---|---|
| Size Ranges | 1/8 inch – 4 inch (DN6~DN100) |
| Pressure Classes | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type of Forged | NPT, BSP, BSPT Fittings |
| Dimension Standard | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| Type of Connection | Welding |
| Element | Composition %, Note C |
|---|---|
| Copper | .40 max, note A |
| Carbon | .35 max |
| Silicon | .10-35 |
| Manganese | .60-1.05 |
| Chromium | .30 max, note A,B |
| Phosphorus | .035 max |
| Molybdenum | .12 max, note A,B |
| Sulfur | .040 max |
| Nickel | .40 max, note A |
| Vanadium | .08 max, note A |
| Property | |
|---|---|
| Reduction of area, min: | 30% min |
| Tensile Strength, min: | 70,000 psi (485 MPa] |
| Min. Yield Point: | 36,000 psi [250 MPa] |
| Hardness, HB, max | 187 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Luke Steel is a top manufacturer and supplier of high-quality Carbon Steel Forged Socket Weld Pipe Fittings products in Houstan, USA. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
These fittings are widely utilized in industries that demand secure and robust pipe connections. They are particularly well-suited for applications in oil and gas refineries, chemical processing facilities, thermal and nuclear power plants, and water treatment systems. Thanks to their leak-proof socket weld design, they excel in high-pressure environments involving steam, gas, oil, and hydraulic pipelines. These fittings are especially prized in settings where welding strength and joint integrity are paramount, ensuring safety, reliability, and operational efficiency in complex and heavy-duty piping systems.
Luke Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Houstan, USA.
