Carbon steel JIS G3456 tubing is applied comprehensively in various industries due to its high strength and heat transfer characteristics. The pipes are utilized in superheaters, economizers, and boilers in the power generation sector to ensure efficient heat transfer and increased energy efficiency. The pipes are also applied in fossil fuel stations and steam-generating plants for their ability to withstand high pressure and temperature. JIS G3456 pipes are also utilized in petrochemical plants and refineries for their long-lasting feature under stringent conditions.
JIS G3456 Carbon Steel Pipes are mainly made up of carbon (≤0.20%), manganese (0.30–0.80%), and traces like phosphorus and sulfur (≤0.035%) to provide maximum weldability and less brittleness. Other elements such as silicon, chromium, and molybdenum are incorporated in traces to provide heat resistance. These pipes provide tensile strength of approximately 380 MPa, yield strength of about 205 MPa, and elongation of approximately 30%, depending on grade. Designed for applications in high-temperature environments, these pipes provide a best mix of mechanical strength, ductility, and heat transfer capacity
| Standards | JIS G3456 Carbon Steel Pipe |
|---|---|

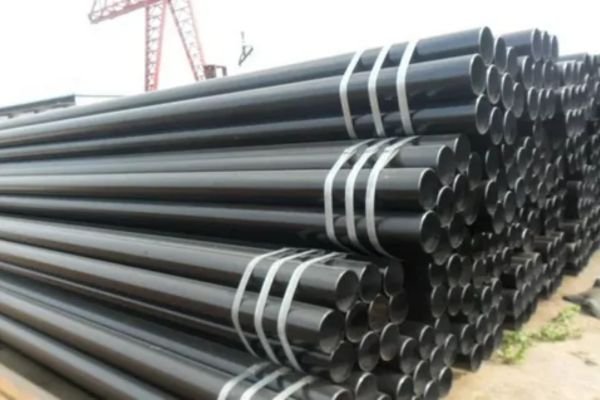

| JIS G3456 Carbon Steel Seamless Pipe Size | 4 to 219mm W. T.: 0.5 to 20mm |

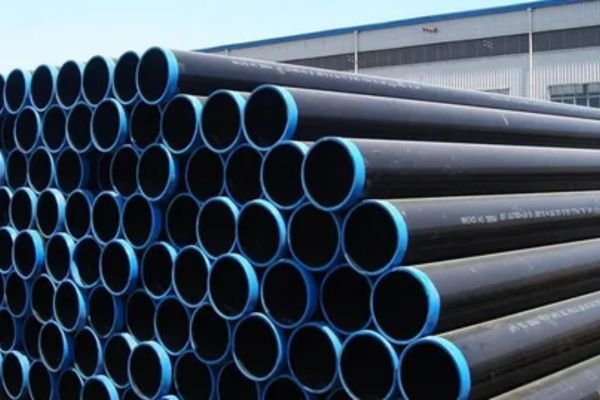

| JIS G3456 Carbon Steel Welded Pipe Size | 5.0 mm – 1219.2 mm |
| JIS G3456 Carbon Steel EFW Pipe size | 5.0 mm – 1219.2 mm |
| JIS G3456 Carbon Steel Tube Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| JIS G3456 Carbon Steel Pipe Schedule | SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| JIS G3456 Carbon Steel Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |
| JIS G3456 Carbon Steel Welded Tube Size | 6.35 mm OD To 152 mm OD |
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| JIS G3456 Carbon Steel Tube wall thickness | 0.020″ –0.220″, (special wall thicknesses available) |
| Length | Single Random, Double Random, Standard & Cut length Pipe & Tube |
| Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |

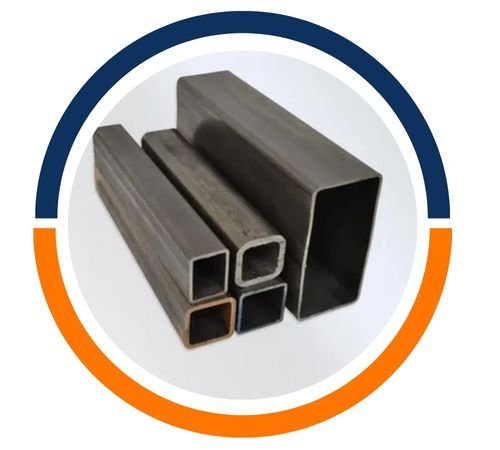

| Form | Round, Hydraulic, ‘U’ bent or Hollow,LSAW, Boiler, Straight Pipe, Clad Pipe, Rectangular, Square Pipe Etc |
| Type | Welded, Seamless, ERW, EFW, Fabricated Pipe, ‘U’ bent or Hollow, Hydraulic, LSAW, Boiler, Straight Tube, Tube Coil, Round, Rectangular, Square Tube etc |
| End | Plain End, Beveled End, Treaded Pipe & Tube |
| Marking | All JIS G3456 Carbon Steel Pipe are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Application | Oil Pipe & Tube, Gas Pipe & Tube, Fluid Pipe & Tube, Boiler Pipe & Tube, Heat exchanger Tube |
| Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Test Certificate | Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection |
| Grade | C | Si | Mn | P | S |
| JIS G3456 STPT370 | ≤ 0.25 | 0.10-0.35 | 0.30-0.90 | ≤ 0.035 | ≤ 0.035 |
| JIS G3456 STPT410 | ≤ 0.30 | 0.10-0.35 | 0.30-1.00 | ≤ 0.035 | ≤ 0.035 |
| JIS G3456 STPT480 | ≤ 0.33 | 0.10-0.35 | 0.30-1.00 | ≤ 0.035 | ≤ 0.035 |
| Grade | Tensile Property (N/mm2) | Yield Point or Yield Strength (N/mm2) | Elongation (%) | |||
| NO. 11 Sample; NO. 12 Sample | NO. 5 Sample | NO. 4 Sample | ||||
| Longitudinal | Transverse | Longitudinal | Transverse | |||
| JIS G3456 STPT370 | ≥ 370 | ≥ 215 | ≥ 30 | ≥ 25 | ≥ 28 | ≥ 23 |
| JIS G3456 STPT410 | ≥ 410 | ≥ 245 | ≥ 25 | ≥ 20 | ≥ 24 | ≥ 19 |
| JIS G3456 STPT480 | ≥ 480 | ≥ 275 | ≥ 25 | ≥ 20 | ≥ 22 | ≥ 17 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is one of the prominent manufacturers and suppliers of high-quality Carbon Steel JIS G3456 Pipe in Houstan, USA. Being a company of premium steel material, we have a comprehensive product range in the form of Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our wide inventory list consists of Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. With commitments to time-to-market delivery and high quality of customer service, Jaxon Steel assures to deliver high-quality raw materials for better performance in any demanding industrial applications. Contact us today at Jaxon Steel to order all of your Carbon Steel JIS G3456 Pipe needs.
| Type | Allowable Deviation of Outer Diameter | Allowable Deviation of Wall Thickness | |||
| Hot-Working Seamless Steel Pipe | ＜50 mm | ± 0.5 mm | ＜ 4 mm ≥ 4mm | ± 0.5 mm ±12.5% | ≤ 20% of thickness |
| ≥ 50mm~＜160mm | ± 1% | ||||
| ≥ 160mm~≤ 200 mm | ± 1.6 mm | ||||
| ≥ 200 mm | ± 0.8% | ||||
| For ≥350 mm ones, we can measure according to the perimeters. Allowable deviation is ± 0.5%. | |||||
| Cold-Working Steel Seamless Pipe and Electric-Resistance Welded(ERW) Steel Pipe | ≤ 40 mm | ± 0.03 mm | ＜ 2 mm ≥ 2 mm | ± 0.2 mm ± 10 | |
Carbon Steel JIS G3456 Pipes are extensively applied in industries that demand safe, high-temperature piping systems. In power generation plants, they are used in superheaters, economizers, and boilers for effective heat transfer. They are used in fossil fuel plants and steam-generation systems due to their pressure and temperature resistance. They deliver reliable performance in petrochemical and refinery plants under severe and corrosive conditions. Moreover, their integrity at high thermal and mechanical stress conditions also renders them applicable for application in thermal processing, industrial heat recovery plants, and chemical processing plants.
