Luke Steel, based in Houston, Houstan, has built a solid reputation as a reliable manufacturer and supplier of top-notch Carbon Steel LSAW Pipe. They cater to essential industries like oil and gas, water transmission, structural engineering, and large-scale infrastructure projects. Known for their pipes’ exceptional dimensional accuracy, strong weld integrity, and long-lasting durability, Luke Steel makes sure that every Longitudinal Submerged Arc Welded (LSAW) pipe adheres to strict international standards. With cutting-edge manufacturing technology, rigorous quality control, and prompt delivery, Luke Steel is the go-to choice for customers seeking robust and cost-effective piping solutions for fluid transport, structural support, and high-pressure applications.

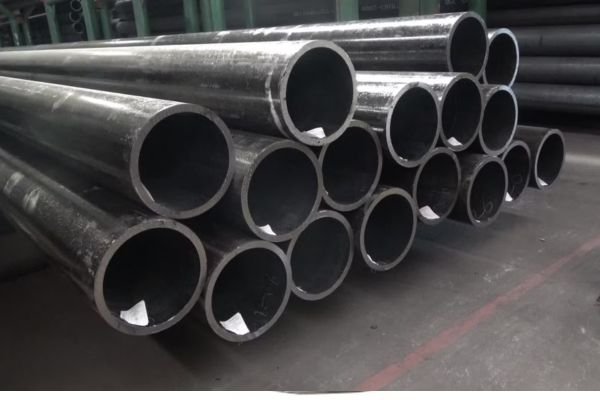

The Carbon Steel LSAW Pipe is crafted from carbon steel plates that contain about 0.20–0.30% carbon, along with balanced levels of manganese, silicon, and trace elements to boost strength and weldability. These pipes generally provide tensile strength ranging from 415–655 MPa and yield strength around 245–485 MPa, showcasing excellent impact toughness and consistent weld quality. The LSAW process guarantees precise, deeply penetrated weld seams, ensuring high structural integrity, uniform mechanical properties, and leak-proof performance for demanding applications that require large diameters and thick walls.
| Standard | : | API 5L, ASME B36.10M-1996, DIN1626, DIN1629, DIN17175, DIN 2448, JIS G3452, JIS G3454, JIS G3455, JIS G3456, JIS G3457, JIS G3461 |
|---|---|---|
| Sizes (Seamless) | : | 1/2” NB – 60” NB |
| Sizes (ERW) | : | 1/2” NB – 24” NB |
| Sizes (SAW) | : | 16” NB – 100” NB |
| Length | : | Fixed: 5.8, 6.0, 11.8, 12.0m, Random length: 5-12m |
| Schedules | : | Schedule S 5, S 10, S 20, S 40, S 60, S XS, S 80, S 100, S 120, S 140, S 160, S XXS |
| Material | : | Q235, Q345, A53B, A106B, API 5L B, X42, X46, X52, X60, X65, ST37.0, ST35.8, St37.2, St35.4/8, St42, St45, St52, St52.4, STP G38, STP G42, STPT42, STB42, STS42, STPT49, STS49 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Nominal | Pipe size | OD mm | Schedule 20 | Schedule 30 | Schedule STD | Schedule 40 | Schedule 60 | Schedule Extra | Strong (XS) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mm | Inch | Wall | Wt. | Wall | Wt. | Wall | Wt. | Wall | Wt. | Wall | Wt. | Wall | Wt. | |
| 3 | 1/8 | 10.3 | 1.73 | 0.37 | 1.73 | 0.357 | 2.41 | 0.47 | ||||||
| 6 | ¼ | 13.7 | 2.24 | 0.63 | 2.24 | 0.625 | 3.02 | 0.804 | ||||||
| 10 | 3/8 | 17.1 | 2.31 | 0.84 | 2.31 | 0.84 | 3.2 | 1.1 | ||||||
| 15 | ½ | 21.3 | 2.77 | 1.26 | 2.77 | 1.26 | 3.73 | 1.62 | ||||||
| 20 | ¾ | 26.7 | 2.87 | 1.69 | 2.87 | 1.68 | 3.91 | 2.2 | ||||||
| 25 | 1 | 33.4 | 3.38 | 2.5 | 3.38 | 2.5 | 4.55 | 3.24 | ||||||
| 32 | 11/4 | 42.2 | 3.56 | 3.39 | 3.56 | 3.38 | 4.85 | 4.47 | ||||||
| 40 | 11/2 | 48.3 | 3.68 | 4.05 | 3.68 | 4.05 | 5.08 | 5.41 | ||||||
| 50 | 2 | 60.3 | 3.9 | 5.44 | 3.9 | 5.44 | 5.5 | 7.48 | ||||||
| 65 | 21/2 | 73 | 5.2 | 8.63 | 5.16 | 8.63 | 7 | 11.41 | ||||||
| 80 | 3/8 | 88.9 | 5.5 | 11.3 | 5.5 | 11.3 | 7.62 | 15.3 | ||||||
| 90 | 31/2 | 1.6 | 5.74 | 13.57 | 5.74 | 13.57 | 8.08 | 18.63 | ||||||
| 100 | 4 | 114.3 | 6.02 | 16.07 | 6.02 | 16.07 | 8.56 | 22.3 | ||||||
| 125 | 5 | 141.3 | 6.6 | 21.77 | 6.55 | 21.77 | 9.53 | 30.9 | ||||||
| 150 | 6 | 168.3 | 7.11 | 28.26 | 7.11 | 28.26 | 10.97 | 42.5 | ||||||
| 200 | 8 | 219.1 | 6.35 | 33.3 | 7 | 36.8 | 8.2 | 42.5 | 8.2 | 42.5 | 10.3 | 53.1 | 12.7 | 64.6 |
| 250 | 10 | 273 | 6.35 | 41.7 | 7.8 | 51.3 | 9.27 | 60.3 | 9.27 | 60.3 | 12.7 | 81.5 | 12.7 | 81.5 |
| 300 | 12 | 323.9 | 6.35 | 49.7 | 8.4 | 65.2 | 9.53 | 73.8 | 10.3 | 79.7 | 14.3 | 109 | 12.7 | 97.4 |
| 350 | 14 | 355.6 | 7.92 | 68.1 | 9.53 | 81.3 | 9.53 | 81.3 | 11.13 | 94.3 | 15.1 | 126.4 | 12.7 | 107 |
| 400 | 16 | 406.4 | 7.92 | 77.9 | 9.5 | 93.3 | 9.53 | 93.3 | 12.7 | 123 | 16.7 | 160 | 12.7 | 123 |
| 450 | 18 | 457.2 | 7.92 | 87.8 | 11.1 | 122 | 9.53 | 105 | 14.3 | 156 | 19 | 206 | 12.7 | 130 |
| 500 | 20 | 508 | 9.53 | 117.2 | 12.7 | 155.1 | 9.53 | 177.2 | 15.1 | 183 | 20.6 | 248 | 12.7 | 155.1 |
| 550 | 22 | 558.8 | 9.53 | 129 | 12.7 | 171 | 9.53 | 129 | 22.2 | 294 | 12.7 | 171 | ||
| 600 | 24 | 609.6 | 9.53 | 141 | 14.3 | 210 | 9.53 | 141 | 17.4 | 255 | 24.5 | 355 | 12.7 | 187 |
Luke Steel is a leading supplier of high-quality Carbon Steel LSAW Pipe products in Houstan, USA. We focus on steel solutions and offer a variety of products. This includes Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our products are Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. We are known for our good delivery and excellent customer care. We aim to provide strong and durable steel materials for many industrial uses. We work hard to meet high standards, making us a trusted partner for your steel needs.
Carbon Steel LSAW Pipe finds extensive use in oil and gas transmission lines, cross-country pipelines, and water supply systems that need large-diameter, high-pressure pipes with dependable weld strength. They’re also utilized in both offshore and onshore structural applications, such as pile foundations, bridge supports, and structural columns. Thanks to their outstanding weld integrity, high dimensional accuracy, and ease of fabrication, these pipes are perfect for long-distance fluid transport and critical load-bearing structures. With their impressive strength, durability, and cost-effectiveness, LSAW pipes play a crucial role in energy, infrastructure, and heavy construction projects.
