Luke Steel, founded in 1995 and headquartered in Houston, Houstan, has developed an exemplary reputation as one of the leading manufacturers and suppliers of Carbon Steel WPHY 56 Pipe Fittings. Expertise in high-performance piping solutions, the company satisfies the stringent needs of industries demanding dependable, pressure-resistant systems. Focused on quality, precision engineering, and customer satisfaction, Luke Steel provides WPHY 56 fittings as per international standards. Compliant with the best manufacturing practices, using high-tech manufacturing processes, expert professionals, and rigorous quality check, the firm facilitates prompt delivery and reliable solutions to key industry verticals such as oil & gas, petrochemicals, power, and infrastructure—within the USA and worldwide.
Carbon Steel WPHY 56 Pipe Fittings are made from a highly resistant alloy of carbon, manganese, phosphorus, sulfur, and silicon, offering greater strength and structural reliability. These fittings provide a minimum yield strength of 56,000 psi (about 386 MPa) and exhibit superior tensile strength, impact resistance, and weldability. These fittings are then strengthened by applying heat treatments in the form of normalizing and quenching, which improve their pressure-handling capacity and durability. The chemical and mechanical composition of WPHY 56 provides superior performance under harsh conditions, and these fittings are suitable for high-pressure flow systems carrying fluids and gases.
| Specifications | ASTM A860/ ASME SA860 |
|---|---|
| Grade | API 5L X56 |
| Dimension | ASME/ ANSI B16.9 | ASME B16.28 | MSS-SP-43 | BS1560 | BS4504 | BS10 |
| Thickness of Fitting | SCH10, SCH 20, SCH30, STD SCH40, SCH80, SCH60, XS, SCH100, SCH 120, SCH140, SCH 160, XXS available with NACE MR 01-75 |
| Size Range | Seamless Butt-Weld Fitting: From 1/2″ – 10″ Welded ButtWeld Fitting: From 1/2″ – 48″ |
| Bending Radius | Radius=1 D, 2D, 3 D, 5D, 6D, 8 D, 10D |
| Types | Welded | Seamless | Fabricated |
| Process of Manufacturing | Push, Press, Cast, Forge. |
| Grade | Cr | C | Cu | Mn | Cb | S | P | V | Si | Ni | Mo | Ti |
| A860 WPHY 52 Fitting | 0.30 | 0.20 | 0.35 | 1.00-1.45 | 0.06 | 0.03 | 0.01 | 0.10 | 0.15-0.40 | 0.50 | 0.25 | 0.05 |
| Fittings Element | Tensile Strength | Elongation | Yield Strength (0.2%Offset) |
| X56 | 515-690 | 28 % | 66 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| inch | mm | inch | Length (inch) | Center to End (inch) | Center to End (inch) | Lap Diameter (inch) | Long Length (inch) | Short Length (inch) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Luke Steel is a top manufacturer and supplier of high-quality Carbon Steel WPHY 56 Pipe Fittings products in Houstan, USA. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.

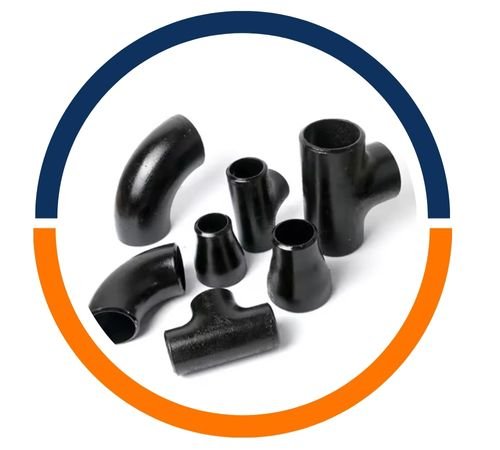

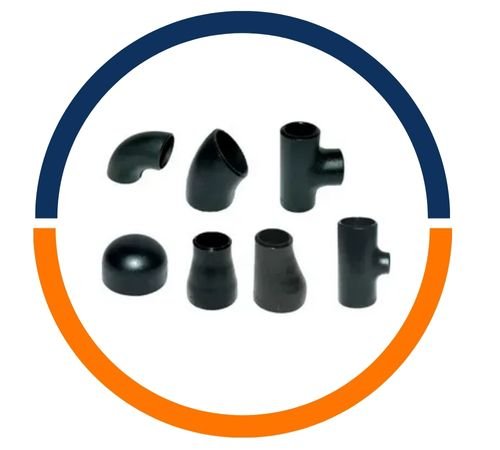

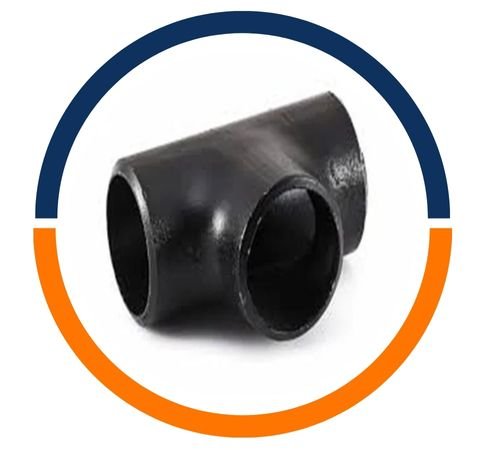

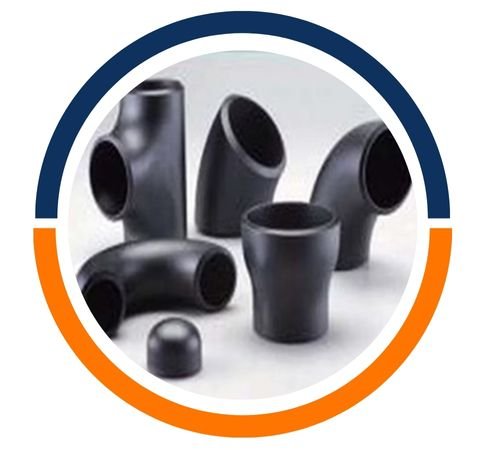

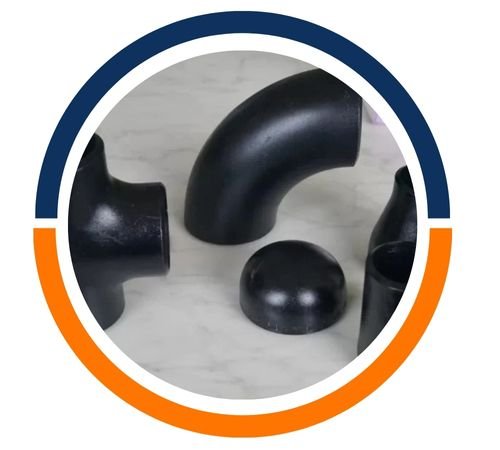

Carbon Steel WPHY 56 Pipe Fittings are a must in applications where strength, pressure resistance, and corrosion resistance are unacceptable compromise. Carbon Steel WPHY 56 Pipe Fittings are used extensively in oil and gas pipeline transmission, petrochemical plants, offshore platforms, and power generation plants. Their suitability for high-temperature and high-pressure conditions makes them suitable for refineries, shipbuilding, and water treatment plants. They come in different sizes like elbows, tees, reducers, and caps and play a crucial role in connecting intricate pipeline networks. Ranked for their strength, reliability, and simple installation, WPHY 56 fittings are a popular choice for efficient and safe industrial piping systems
Luke Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Houstan, USA.
