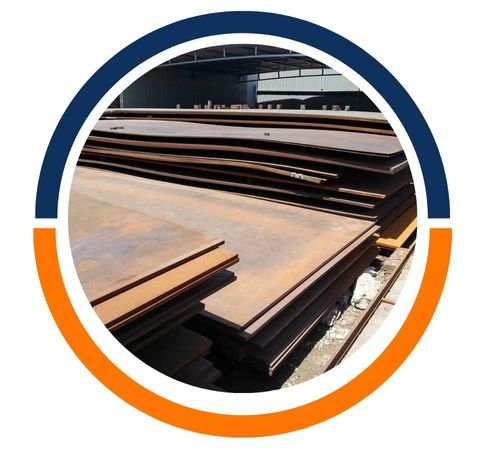

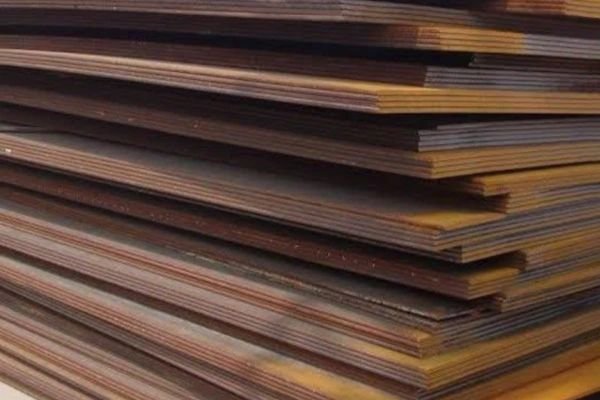

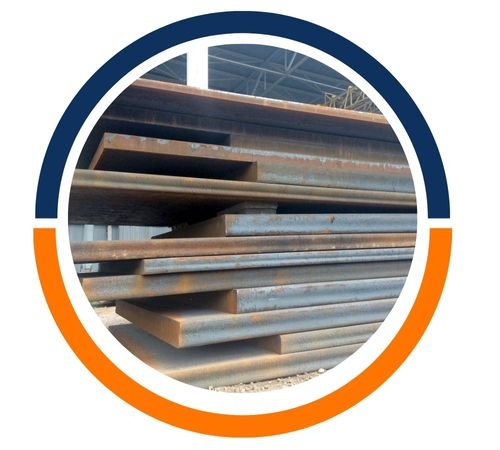

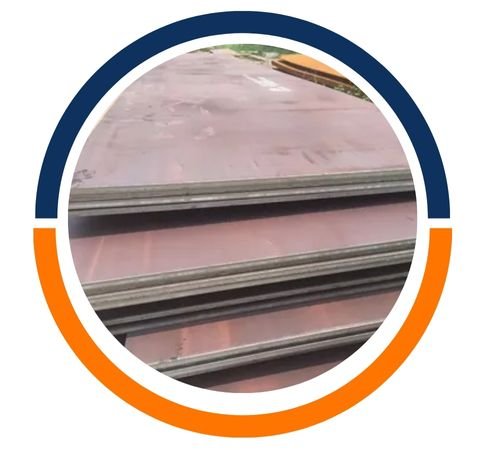

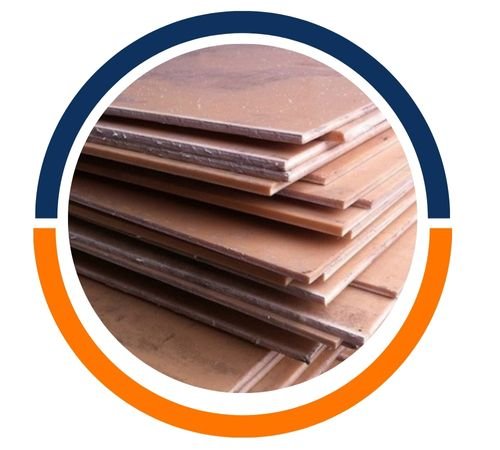

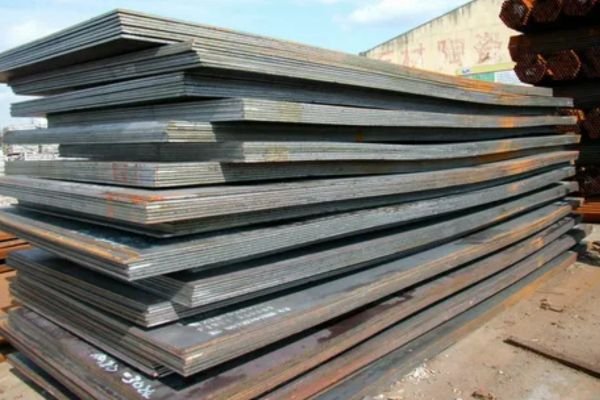

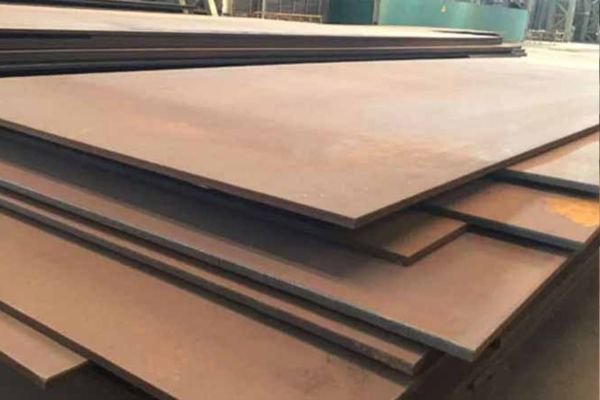

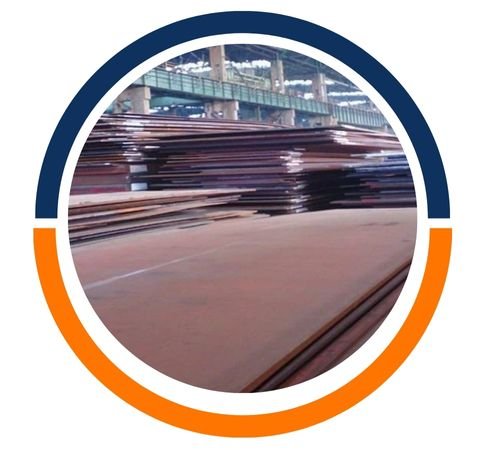

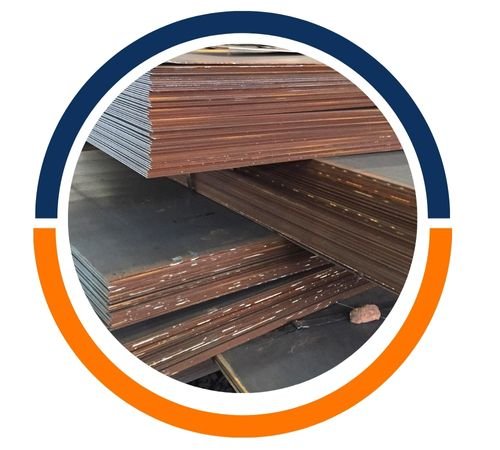

Luke Steel is a reliable manufacturer and supplier of DILLIDUR 400V sheets and plates, proudly based in Houston, USA. They specialize in high-performance, abrasion-resistant steel, offering precision-cut plates that stand up to the toughest conditions with remarkable durability and reliability. Catering to industries like mining, construction, recycling, and heavy equipment manufacturing, Luke Steel has built a solid reputation for delivering top-notch products, competitive prices, and timely deliveries. Their DILLIDUR 400V steel adheres to strict specifications, ensuring consistent performance in applications where wear and impact resistance are crucial.
DILLIDUR 400V is a quenched-and-tempered wear-resistant steel plate, boasting a nominal Brinell hardness of 400 HBW. Its alloy mix includes carbon, manganese, chromium, and other elements that enhance hardenability, striking a perfect balance between abrasion resistance and toughness. These plates generally show tensile strengths ranging from 1,100 to 1,400 MPa and yield strengths around 900 to 1,100 MPa, all while maintaining enough ductility for fabrication. The steel’s heavy-duty toughness makes it ideal for enduring repetitive impacts and friction, while also supporting welding, cutting, and forming processes.
Item: Dillidur 400V
Thickness : 5mm to 150mm
Length : 6,000mm to 12,000mm
Width : 1,500mm to 2,500mm
Heat Treatment: N, Q+T
Surface Point : PVDF, PE, HDP, SMP, EP
| C | Si | Mn | P | S | Mo | Ni | Cr | V | Nb | B |
| ≤ 0.20 | ≤ 0.50 | ≤ 1.80 | ≤ 0.025 | ≤ 0.010 | ≤ 0.50 | ≤ 0.80 | ≤ 1.50 | ≤ 0.08 | ≤ 0.05 | ≤ 0.005 |
| Grade | Mechanical Property | Charpy V Impact Test | |||
| DILIDUR 400V | Yield | Tensile | Elongation | Degree | longitudinal |
| Min Mpa | Mpa | Min % | -40 | J | |
| 1000 | 1250 | 10 | 45 | ||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| 1/8″ | 3/8″ | 3/4″ | 1-1/2″ | 3″ |
| 3/16″ | 1/2″ | 1″ | 2″ | 4″ |
| 1/4″ | 5/8″ | 1-1/4″ | 2-1/2″ | Â |
| *1/8″ thick plate is available in one size only 60″x 120″. The 3/6″ thick plate is available only as 48″ x 144″ and 96″ x 144″. | ||||
| Thickness | Width | Length |
| 4 | 2000 | 6000 |
| 5 | 2000 | 6000 |
| 6 | 2000 | 6000 |
| 6 | 2500 | 6000 |
| 8 | 2000 | 6000 |
| 8 | 2500 | 6000 |
| 10 | 2000 | 6000 |
| 12 | 2000 | 6000 |
| 15 | 2000 | 6000 |
| 16 | 2000 | 6000 |
| 20 | 2000 | 6000 |
| 25 | 2000 | 6000 |
| 32 | 2000 | 6000 |
| 40 | 2000 | 6000 |
| 50 | 2000 | 6000 |
| 60 | 1800 | 3400 |
