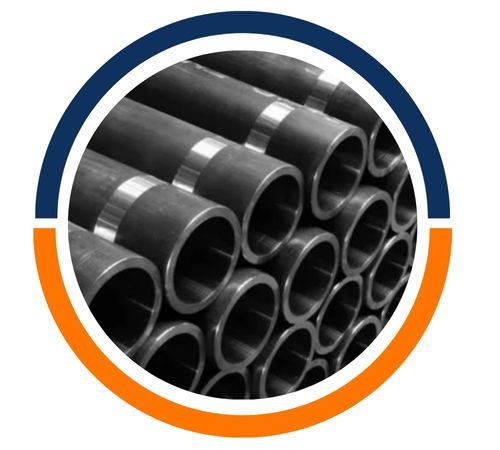

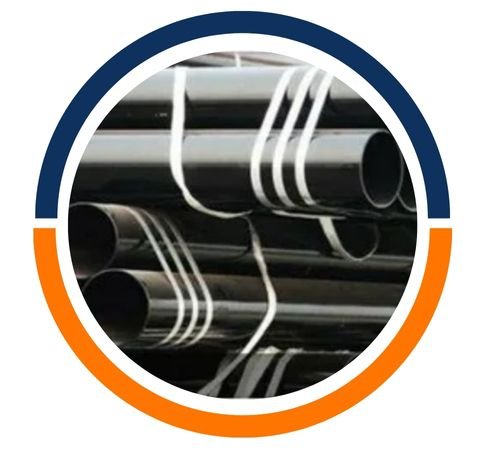

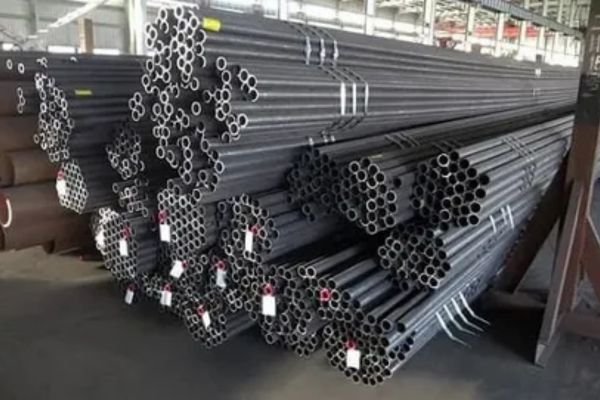

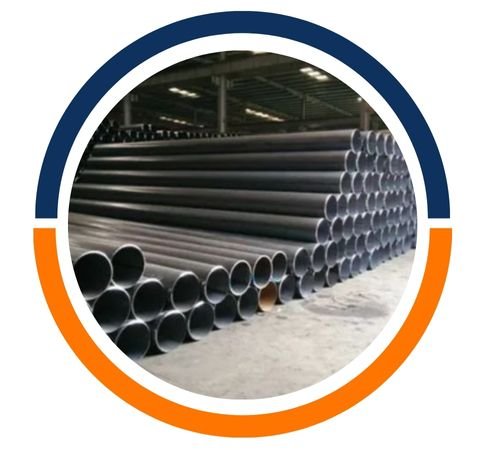

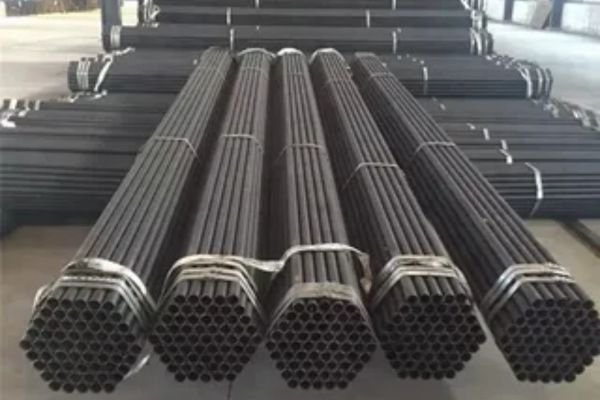

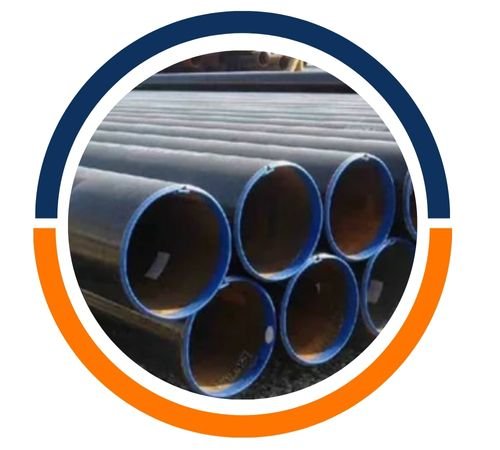

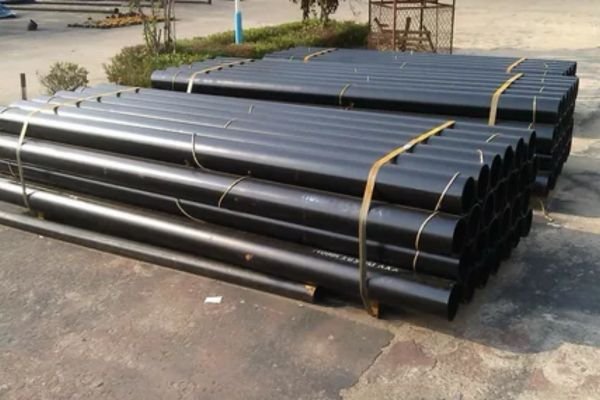

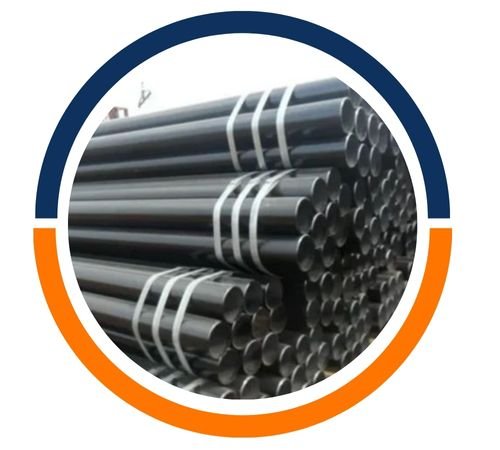

Luke Steel, based in Houston, Houstan, has built a solid reputation as a reliable manufacturer and supplier of top-notch EN 10305-1 / EN 10305-4 seamless tubing. They cater to a variety of industries, including automotive, hydraulics, precision engineering, and general mechanical applications. Renowned for their seamless precision tubes, Luke Steel guarantees exceptional dimensional accuracy and a smooth surface finish, ensuring that every tube adheres to stringent European standards. With cutting-edge manufacturing processes, thorough quality checks, and timely deliveries, Luke Steel is dedicated to providing customers with durable, high-performance seamless tubes that excel in applications where tight tolerances, leak-proof reliability, and longevity are essential for success.
The EN 10305-1 / EN 10305-4 seamless tubing is crafted from low carbon steel, containing approximately 0.10–0.20% carbon along with controlled levels of manganese and silicon to achieve the perfect balance of strength and formability. These tubes are known for their excellent dimensional precision, uniform wall thickness, and smooth inner and outer surfaces. Typically, they boast a tensile strength ranging from 500–700 MPa, along with good elongation properties, making them easy to bend, flare, and machine. Available in cold-drawn or normalized conditions, they provide consistent mechanical performance and leak-tight reliability for precision fluid and structural applications.
| Steel Name | Steel Number | C max. | Si max. | Mn max. | P max. | S max. | AL min. |
| E215 | 1.0212 | 0.10 | 0.05 | 0.7 | 0.025 | 0.025 | 0.025 |
| 1.0308 | 0.17 | 0.35 | 1.2 | 0.025 | 0.025 | / | |
| E355 | 1.058 | 0.22 | 0.55 | 1.6 | 0.025 | 0.025 | / |
| Mechanical properties at room temperature | |||||||||||||
| Steel Grade | Minimum values for the delivery condition | ||||||||||||
| Steel Name | Steel Number | +C | +LC | +SR | +A | +N | |||||||
| Rm Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | ||
| E215 | 1.0212 | 430 | 8 | 380 | 12 | 380 | 280 | 16 | 280 | 30 | 290 to 430 | 25 | 30 |
| E235 | 1.0308 | 480 | 6 | 420 | 10 | 420 | 350 | 16 | 315 | 25 | 340 to 480 | 235 | 25 |
| E355 | 1.0580 | 640 | 4 | 580 | 7 | 580 | 450 | 10 | 450 | 22 | 490 to 630 | 355 | 22 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a leading manufacturer and distributor of high-quality EN10305-1 / EN10305-4 Seamless Tubing in Houstan, USA. We offer premium steel materials and a diverse range of products, including Alloy Steel, Carbon Steel, Mild Steel, and Galvanized Steel. Our extensive inventory features Tubes, Pipes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Committed to fast delivery and exceptional customer service, we source top-grade raw materials to ensure superior precision, strength, and durability for demanding industrial applications. Contact us today for all your EN10305-1 / EN10305-4 Seamless Tubing needs!
|
Hot rolled |
Outside Diameter, mm |
Tolerance, mm |
|
OD≤101.6 |
+0.4/-0.8 |
|
|
101.6＜OD≤177.8 |
+0.4/-1.2 |
|
|
Cold Drawn |
Outside Diameter, mm |
Tolerance, mm |
|
OD＜25.4 |
±0.10 |
|
|
25.4≤OD≤38.1 |
±0.15 |
|
|
38.1＜OD＜50.8 |
±0.20 |
|
|
50.8≤OD＜63.5 |
±0.25 |
|
|
63.5≤OD＜76.2 |
±0.30 |
|
|
76.2≤OD≤101.6 |
±0.38 |
|
|
101.6＜OD≤177.8 |
+0.38/-0.64 |
|
|
Hot rolled
|
Outside Diameter, mm |
Tolerance, % |
|
OD≤101.6, WT≤2.4 |
+40/-0 |
|
|
OD≤101.6, 2.4＜WT≤3.8 |
+35/-0 |
|
|
OD≤101.6, 3.8＜WT≤4.6 |
+33/-0 |
|
|
OD≤101.6, WT>4.6 |
+28/-0 |
|
|
OD>101.6, 2.4＜WT≤3.8 |
+35/-0 |
|
|
OD>101.6, 3.8＜WT≤4.6 |
+33/-0 |
|
|
OD>101.6, WT>4.6 |
+28/-0 |
|
|
Cold Drawn
|
Outside Diameter, mm |
Tolerance, % |
|
OD≤38.1 |
+20/-0 |
|
|
OD>38.1 |
+22/-0 |
In the automotive industry, EN 10305-1 / EN 10305-4 seamless tubing is commonly used for fuel lines, brake lines, and hydraulic systems that require precise dimensions and flawless internal surfaces. In hydraulics and pneumatics, these tubes safely transport high-pressure fluids and gases without any leaks. They also find applications in mechanical and precision engineering for instrument tubing, control lines, and structural uses where tight tolerances and easy forming are crucial. Their consistent strength, excellent weldability, and clean finish make them a go-to choice for applications that depend on safe, accurate, and long-lasting tube performance.
