quality producer and supplier of J356 tubing in United Arab Emirates, Houstan, Luke Steel provides accurately engineered tubing solutions to meet various industrial requirementsWe provide high-quality J356 tubing that meets SAE J356 standards. We are world-famous for customer-centric service and quality-oriented philosophyBetter mechanical strength, surface finish, and dimensional accuracy are offered by these seamless, cold-drawn, and DOM (Drawn Over Mandrel) tubes. Luke Steel offers reliable delivery and custom solutions that ensure consistent and reliable performance under severe operating conditions to diverse industries such as heavy machinery, hydraulic systems, and the automotive industry.

J356 Tubing Supplier in Houstan, J356 Tubes Exporters in California, J356 Tubing Manufacturers in Los Angeles, J356 Tubes Price List in Texas, J356 Tubes Supplier in Houston, J356 Tubing Houston, J356 Tubing Suppliers in Los Angeles, J356 Tubing Price in USA

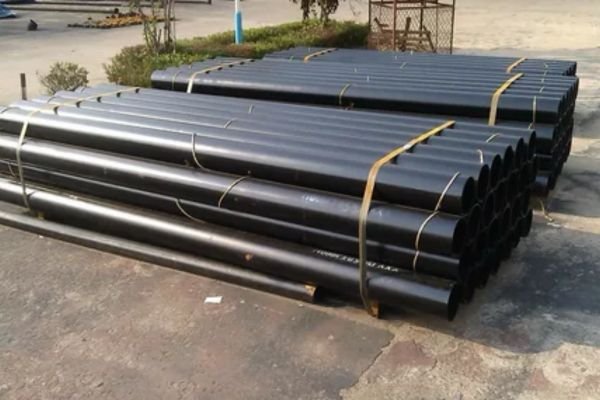

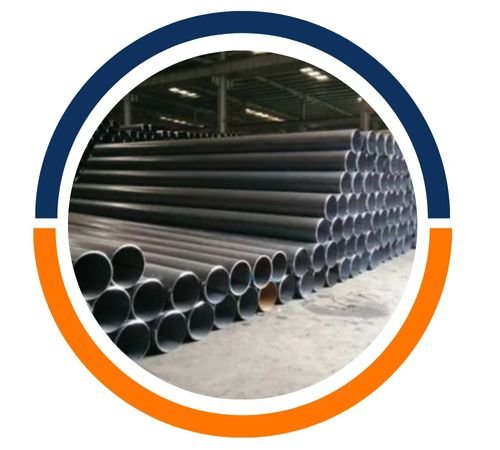

J356 Tubes

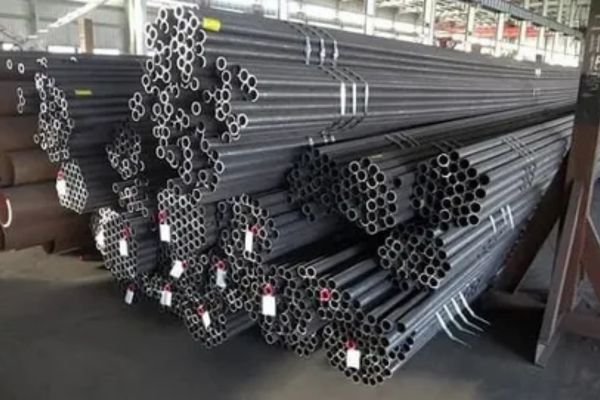

J356 Boiler Tubing

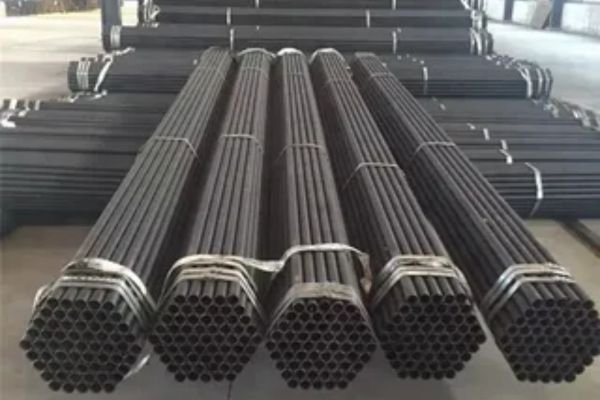

J356 Tubes Tubing

Table of Contents

J356 Tubing Stockist in Texas, J356 Tubing Dealer in Los Angeles, J356 Tubes Manufacturers in Houston, J356 Tubes Suppliers in California, J356 Tubing Exporters in Houston, J356 Tubes Price List​

What is J356Tubing?

Low-carbon steel with an equally balanced mix of carbon, manganese, phosphorus, and sulphur is widely employed to produce J356 tubing. This composition is assured to provide good machinability, weldability, and formability. To enhance mechanical properties and dimensional consistency, the tubing is colddrawn and heattreated. It offers excellent elongation, impact strength, high tensile strength (in most cases greater than 550 MPa), and yield strength. The DOM (Drawn Over Mandrel) process also enhances its surface condition and equal wall thickness, and that makes J356 tubing suitable for applications under pressure and load.

Carbon-Steel-Tubing

SAE J356 Tubing Specifications

Grade: ASME/ASTM SA179, SA192, SA210, SA178, SA214, API 5L
Size: 1/8” NB TO 24” NB Sch 40/80/160/XXS
Form Round, Square, Rectangular, Coil, U Tube,
Length Single Random, Double Random & Required Length
End Plain End, Bevelled End
Type Seamless / ERW / Welded
Certification For Carbon Mill Test Certificate as per EN 10204 / 3.2B
General Requirements ASTM A 530/A 530M
Dimensional Tolerances ANSI B 36.10
OD Range 1.250″ – 6.000″ (30-150mm)
Wall Range 0.095″ – 1.000″ (.2.5-25mm)

J356 Tubing Chemical Composition

CHEMICAL REQUIREMENTS
Element Cast or Heat Analysis: Weight %
J356 J356 Type-A
Carbon 0.06 Min/0.18 Max 0.02 Min/0.18 Max
Manganese 0.30 Min/0.60 Max 0.10 Min/0.60 Max
Phosphorus 0.04 Max 0.04 Max
Sulfur 0.06 Max 0.05 Max

J356 Tubing Mechanical Properties

MECHANICAL PROPERTIES
Properties Values
Yield Strength (Min) 25,000 PSI
Tensile Strength (Min.) 45,000 PSI
Elongation in 2” (Min) 35% a
Hardness (Rockwell B)(Max) 65 b

If You Are Looking To Buy High Quality Pipes, Sheet, Fittings and Flanges

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Top Manufacturer and Supplier of SAE J356 in Houstan, USA

Jaxon Steel is a leading manufacturer and distributor of high-quality J356 Tubing in Houstan, USA. We specialize in premium steel products, including Alloy Steel, Carbon Steel, Mild Steel, and Galvanized Steel, with a primary focus on J356 Tubing. Our extensive inventory also includes Tubes, Pipes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Committed to fast delivery and exceptional customer service, we source only the finest raw materials to ensure superior strength, durability, and performance for demanding industrial applications. Contact us today for all your J356 Tubing requirements!

SAE J356 Tubing Outside Diameter Tolerances

TUBING WALL THICKNESS TOLERANCES
Nominal Wall
Thickness
(Inches)
Nominal Tube OD
Through 1”
(+/- Inches)
Nominal Tube OD
Over 1” Through
2” (+/- Inches)
Nominal Tube OD
Over 2” Through
4” (+/- Inches)
  .028 (22 Ga) .002/.003 .003/.003 .003/.003
  .035 (20 Ga) .002/.004 .002/.004 .002/.004
  .042 (19 Ga) .002/.004 .002/.004 .002/.005
  .049 (18 Ga) .004/.005 .003/.005 .004/.008
  .058 (17 Ga) .006/.006 .004/.008 .004/.008
  .065 (16 Ga) .006/.006 .004/.008 .004/.008
  .072 (15 Ga) .006/.010 .006/.010 .006/.010
  .083 (14 Ga) .006/.010 .006/.010 .006/.010
  .095 (13 Ga) .006/.010 .006/.010 .006/.010
  .100 .006/.010 .006/.010 .006/.010
  .109 (12 Ga) .006/.010 .006/.010 .006/.010
  .118 .006/.010 .006/.010 .006/.010
  .120 (11 Ga) .006/.010 .006/.010 .006/.010
  .134 (10 Ga) .006/.010 .006/.010 .006/.010
  .148 (9 Ga) .007/.001 .007/.011
  .156 (5/32) .007/.011 .007/.011
  .165 (8 Ga) .007/.011 .007/.011
  .180 (7 Ga) .007/.011 .007/.011
  .197 .008/0.12 .008/0.12
  .203 (6 Ga) .008/0.12 .008/0.12
  .219 (7/32) .008/.012 .008/.012
  .236 .014/.018 .014/.018
  .238 (4 Ga) .014/.018 .014/.018
  .259 (3 Ga) .014/.020 .014/.020

J356 Tubing Exporter in Houston, J356 Tubing Houston, J356 Tubing Price List in California, J356 Tubes Manufacturer in Houstan, J356 Tubes Dealers in Houstan, J356 Tubes Texas, Price of J356 Tube.

Types of J356 Tubing

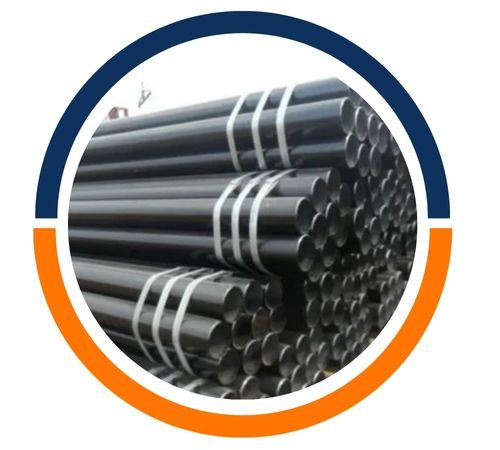

J356 Tubing
SAE J356 Tubing

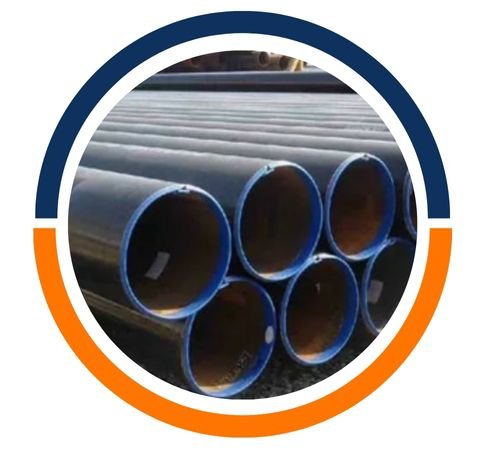

J356 Boiler Tubes

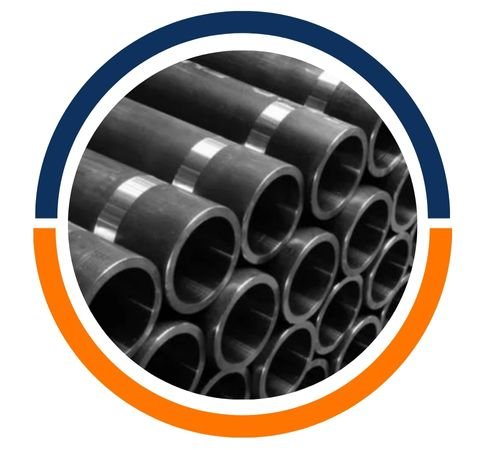

J356 Carbon Steel Tube

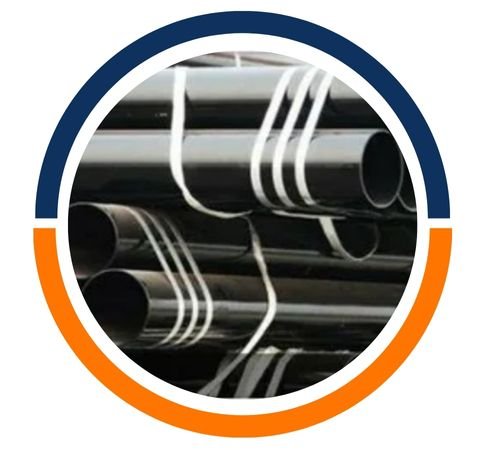

J356 Welded Hydraulic Tubing
J356 Steel Tube

J356 Tubing Exporter in Houstan, J356 Tubes Price List in Houston, J356 Tubing Supplier in California, J356 Tubes Stockists in Los Angeles, J356 Tubes Dealer in Houston, J356 Tubing Price in Houston, J356 Tubes Weight Chart, J356 Tubes Thickness, J356 Tubes Weight Chart in Texas

Uses of J356 Tubing

J356 tubing finds extensive use in industries that require high strength, longevity, and accuracy. It is widely applied in vehicle parts like drive shafts, steering columns, and shock absorbers, hydraulic cylinders, and fluid power systems. Its smooth structure and DOM processing provide it with the best properties for high-pressure applications, where a consistent wall thickness is essential. It also finds application in agricultural machines, material handling systems, and construction equipmentIts dimensional stability, machinability, and fatigue resistance qualify the tubing to be top pick for structural and mechanical systems where reliability and accuracy are critical.
