Luke Steel is a reputed manufacturer and supplier of ASTM A350 LF1 Low-Temperature Carbon Steel Flanges, with headquarters located in Houstan, USA. Having a long history of manufacturing reliable steel products for harsh environments, Luke Steel serves industries where it is necessary to perform with reliability in sub-zero conditions. The LF1 flanges are designed to offer high notch toughness and impact strength at the low temperature of -50°F (-46°C). With dedication to quality, timely shipment, and customer satisfaction, Luke Steel has acquired an excellent reputation in the U.S. steel industry, catering to both domestic and foreign industrial markets.
ASTM A350 LF1 Low-Temperature Carbon Steel Flanges consist of carbon (≤0.30%), manganese (0.60–1.35%), and silicon (0.15–0.30%) as the main elements, supported by trace elements such as nickel (≤0.40%), chromium (≤0.30%), molybdenum (≤0.12%), copper (≤0.40%), and vanadium (≤0.08%) for enhanced mechanical properties. These flanges provide a minimum tensile strength of 485 MPa, yield strength of 250 MPa, 22% elongation, 30% reduction of area, and maximum hardness of 197 HB. Heat treatment is provided to improve microstructure refinement and toughness, ensuring they are reliable in cold weather conditions and cryogenic conditions.
Element | Weight % |
Carbon | 0.08 – 0.15 |
Silicon | 0.15 – 0.50 |
Manganese | 0.30 – 0.60 |
Phosphorus | 0.025 max * |
Sulfur | 0.025 max * |
Molybdenum | 0.90 – 1.10 |
Chromium | 2.00 – 2.50 |
Nickel | 0.5 max |
Property | Values |
Ultimate Tensile Strength * | 95 min Ksi (655 Mpa) |
0.2 % Yield Strength * | 75 min Ksi (517 Mpa) |
Elongation * | 17 % min |
Reduction of Area * | 35 % min |
Charpy Impact Toughness | 42 mean/ 33 min J at –18o C |
Hardness | 197 – 237 BHN (75 Ksi min) |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Luke Steel is one of the most prominent manufacturers and suppliers of superior quality Low Temperature Carbon Steel LF1 Flanges in Houstan, USA. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.
TEMP °C | Class 150 | Class 300 | Class 400 | Class 600 | Class 900 | Class 1500 | Class 2500 |
-29 TO 38 | 19.6 | 51.1 | 68.1 | 102.1 | 153.2 | 255.3 | 425.5 |
50 | 19.2 | 50.1 | 66.8 | 100.2 | 150.4 | 250.6 | 417.7 |
100 | 17.7 | 46.6 | 62.1 | 93.2 | 139.8 | 233 | 388.3 |
150 | 15.8 | 45.1 | 60.1 | 90.2 | 135.2 | 225.4 | 375.6 |
200 | 13.8 | 43.8 | 58.4 | 87.6 | 131.4 | 219 | 365 |
250 | 12.1 | 41.9 | 55.9 | 83.9 | 125.8 | 209.7 | 349.5 |
300 | 10.2 | 39.8 | 53.1 | 79.6 | 119.5 | 199.1 | 331.8 |
325 | 9.3 | 38.7 | 51.6 | 77.4 | 116.1 | 193.6 | 322.6 |
350 | 8.4 | 37.6 | 50.1 | 75.1 | 112.7 | 187.8 | 313 |
375 | 7.4 | 36.4 | 48.5 | 72.7 | 109.1 | 181.8 | 303.1 |
400 | 6.5 | 34.7 | 46.3 | 69.4 | 104.2 | 173.6 | 289.3 |
425 | 5.5 | 28.8 | 38.4 | 57.5 | 86.3 | 143.8 | 239.7 |
450 | 4.6 | 23 | 30.7 | 46 | 69 | 115 | 191.7 |
475 | 3.7 | 17.4 | 23.2 | 34.9 | 52.3 | 87.2 | 145.3 |
500 | 2.8 | 11.8 | 15.7 | 23.5 | 35.3 | 58.8 | 97.9 |
538 | 1.4 | 5.9 | 7.9 | 11.8 | 17.7 | 29.5 | 49.2 |
NPS | O.D. of Flange | Flanges Thickness | Diameter of RF | Diameter of Hub at Base | Lengtd Tdru Hub | Bore or Diameter | Dia. of Hub at Bevel | Radius of Fillet | Deptd of Socket | |||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Welding (WN) Neck | Slip-On (SORF) Threaded (NPT) Socket (SWRF) | Lap Joint (Loose) | Slip-on (SORF) Socket (SWRF) | Lap Joint (Loose) | ||||||||
O | Q | R | X | Y | Y | Y | W | B | H | r | Z | |
1/2 | 3-1/2 | 7/16 | 1-3/8 | 1-3/16 | 1-7/8 | 5/8 | 5/8 | .88 | .90 | .84 | 1/8 | 3/8 |
3/4 | 3-7/8 | 1/2 | 1-11/16 | 1-1/2 | 2-1/16 | 5/8 | 5/8 | 1.09 | 1.11 | 1.05 | 1/8 | 7/16 |
1 | 4-1/4 | 9/16 | 2 | 1-15/16 | 2-3/16 | 11/16 | 11/16 | 1.36 | 1.38 | 1.32 | 1/8 | 1/2 |
1-1/4 | 4-5/8 | 5/8 | 2-1/2 | 2-5/16 | 2-1/4 | 13/16 | 13/16 | 1.70 | 1.72 | 1.66 | 3/16 | 9/16 |
1-1/2 | 5 | 11/16 | 2-7/8 | 2-9/16 | 2-7/16 | 7/8 | 7/8 | 1.95 | 1.97 | 1.90 | 1/4 | 5/8 |
2 | 6 | 3/4 | 3-5/8 | 3-1/16 | 2-1/2 | 1 | 1 | 2.44 | 2.46 | 2.38 | 5/16 | 11/16 |
2-1/2 | 7 | 7/8 | 4-1/8 | 3-9/16 | 2-3/4 | 1-1/8 | 1-1/8 | 2.94 | 2.97 | 2.88 | 5/16 | 3/4 |
3 | 7-1/2 | 15/16 | 5 | 4-1/4 | 2-3/4 | 1-3/16 | 1-3/16 | 3.57 | 3.60 | 3.50 | 3/8 | 13/16 |
3-1/2 | 8-1/2 | 15/16 | 5-1/2 | 4-13/16 | 2-13/16 | 1-1/4 | 1-1/4 | 4.07 | 4.10 | 4.00 | 3/8 | 7/8 |
4 | 9 | 15/16 | 6-3/16 | 5-5/16 | 3 | 1-5/16 | 1-5/16 | 4.57 | 4.60 | 4.50 | 7/16 | 15/16 |
5 | 10 | 15/16 | 7.5/16 | 6-7/16 | 3-1/2 | 1-7/16 | 1-7/16 | 5.66 | 5.69 | 5.56 | 7/16 | 15/16 |
6 | 11 | 1 | 8-1/2 | 7-9/16 | 3-1/2 | 1-9/16 | 1-9/16 | 6.72 | 6.75 | 6.63 | 1/2 | 1-1/16 |
8 | 13-1/2 | 1-1/8 | 10-5/8 | 9-11/16 | 4 | 1-3/4 | 1-3/4 | 8.72 | 8.75 | 8.63 | 1/2 | 1-1/4 |
10 | 16 | 1-3/16 | 12-3/4 | 12 | 4 | 1-15/16 | 1-15/16 | 10.88 | 10.92 | 10.75 | 1/2 | 1-5/16 |
12 | 19 | 1-1/4 | 15 | 14-3/8 | 4-1/2 | 2-3/16 | 2-3/16 | 12.88 | 12.92 | 12.75 | 1/2 | 1-9/16 |
14 | 21 | 1-3/8 | 16-1/4 | 15-3/4 | 5 | 2-1/4 | 3-1/8 | 14.14 | 14.18 | 14.00 | 1/2 | 1-5/8 |
16 | 23-1/2 | 1-7/16 | 18-1/2 | 18 | 5 | 2-1/2 | 3-7/16 | 16.16 | 16.19 | 16.00 | 1/2 | 1-3/4 |
18 | 25 | 1-9/16 | 21 | 19-7/8 | 5-1/2 | 2-11/16 | 3-13/16 | 18.18 | 18.lf2 | 18.00 | 1/2 | 1-15/16 |
lf2 | 27-1/2 | 1-11/16 | 23 | 22 | 5-11/16 | 2-7/8 | 4-1/16 | lf2.lf2 | lf2.25 | lf2.00 | 1/2 | 2-1/8 |
24 | 32 | 1-7/8 | 27-1/4 | 26-1/8 | 6 | 3-1/4 | 4-3/8 | 24.25 | 24.25 | 24.00 | 1/2 | 2-1/2 |

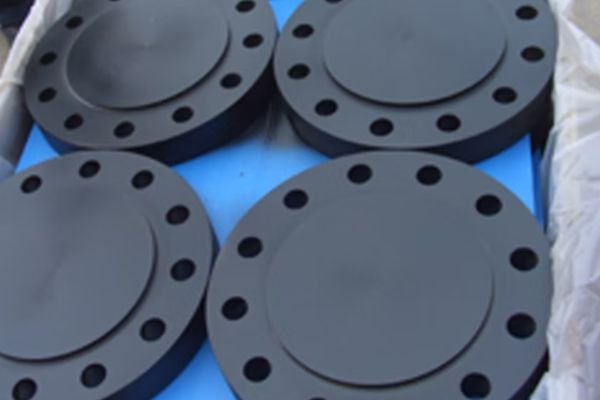

Nominal Pipe Sizes (NPS) | Slip On (SORF) | Threaded (NPT) | Socket Weld (SWRF) | Lap Joint (Loose) | Blind (BLRF) | Weld Neck (WRNR) |
---|---|---|---|---|---|---|
½ | 1 | 1 | 2 | 1 | 2 | 2 |
¾ | 2 | 2 | 2 | 2 | 2 | 2 |
1 | 2 | 2 | 2 | 2 | 2 | 3 |
1¼ | 3 | 3 | 3 | 3 | 3 | 3 |
1½ | 3 | 3 | 3 | 3 | 4 | 4 |
2 | 5 | 5 | 5 | 5 | 5 | 6 |
2½ | 8 | 8 | 8 | 8 | 7 | 10 |
3 | 9 | 9 | 9 | 9 | 9 | 11.5 |
3½ | 11 | 12 | 11 | 11 | 13 | 12 |
4 | 13 | 13 | 13 | 13 | 17 | 16.5 |
5 | 15 | 15 | 15 | 15 | lf2 | 21 |
6 | 19 | 19 | 19 | 19 | 27 | 26 |
8 | 30 | 30 | 30 | 30 | 47 | 42 |
10 | 43 | 43 | 43 | 43 | 70 | 54 |
12 | 64 | 64 | 64 | 64 | 123 | 88 |
14 | 90 | 90 | 90 | 105 | 140 | 114 |
16 | 106 | 98 | 98 | 140 | 180 | 140 |
18 | 130 | 130 | 130 | 160 | 2lf2 | 165 |
lf2 | 165 | 165 | 165 | 195 | 285 | 197 |
22 | 185 | 185 | 185 | 245 | 355 | 225 |
24 | 2lf2 | 2lf2 | 2lf2 | 275 | 430 | 268 |
ASTM A350 LF1 flanges are extensively used in those industries where reliable performance in sub-zero conditions is essential. Typical uses are heat exchangers, condensers, and oil and gas pipeline systems, especially in LNG facilities and offshore drilling platforms. With their high impact resistance and toughness, they are suited for low-temperature applications in power generation, chemical processing, and petrochemical plants. Engineered for withstanding thermal stress and pressure fluctuations, these flanges offer safe, enduring connections in high-pressure systems under cryogenic or cold service conditions, promoting safety and efficiency of operations in a range of demanding situations.
