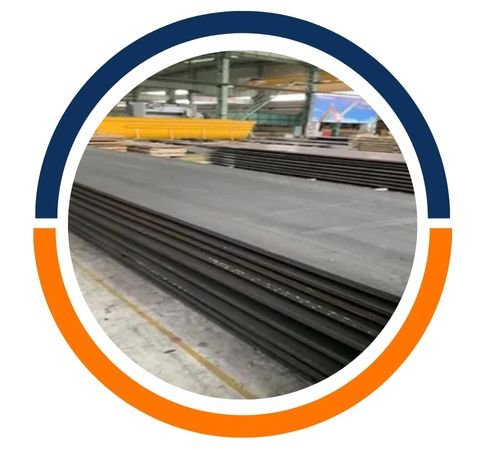

Premium-grade SA 516 GR.60N Plates that meet NACE MR0175 and MR0103 standards are available from Luke Steel, a reputable manufacturer and supplier with locations in the USA and the United Arab Emirates. These plates, which have outstanding notch toughness and resistance to hydrogen-induced cracking, are designed especially for sour service applications. Luke Steel’s normalized plates are perfect for use in the petrochemical, offshore, and oil and gas sectors because they guarantee increased mechanical strength and dependability. Luke Steel is a preferred supplier for critical pressure vessel applications in the Middle East and the United Arab Emirates due to its dedication to on-time delivery, technical support, and international quality standards.
Carbon steel plates SA 516 GR.60N NACE and MR 0103-0175 have a maximum carbon content of 0.21%, a maximum manganese content of 0.55 to 0.98%, a maximum phosphorus content of 0.035 percent, and a maximum sulfur content of 0.035 percent. These plates, which meet the strict NACE MR0175/0103 standards, are supplied in a normalized condition and provide enhanced toughness, stress resistance, and hydrogen cracking resistance. With a minimum yield strength of 260 MPa and a tensile strength ranging from 415 to 585 MPa, they guarantee superior performance in corrosive and high-pressure settings. They are appropriate for fabrication in demanding sour service applications due to their low hardness levels, impact resistance, and weldability.
| Grade | ASME SA 516 GR.60N Boiler and Pressure Vessel Steel Plates |
|---|---|
| Width | 1000mm-4500mm |
| Thickness | 5mm-150mm |
| Length | 3000mm-18000mm |
| Supply Condition | As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement. |
| Impact tested | 52° C |
| Tempering | Notch toughness can be improved by quenched cooling from hot rolling or normalizing by the supplier. If such a faster cooling rate is agreed upon between purchaser and supplier then the steel is also to be tempered at 1200 F. |
| Applications | Used for weld fabrication of pressure vessels that require improved notch toughness for lower than ambient temperature service. |
| Process of Manufacturing | Hot-Rolled (HR) |
| C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
| 0.20 | 0.4 | 0.95/1.50 | 0.025 | 0.025 | 0.02 | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Tensile strength | Yield strength | Elongation min, % 200 mm (8 in) | Elongation min, % 50 mm (2 in) |
| 415-550 MPa | 250 MPa | 21 | 25 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| British Standard | European Norm | ASTM/ASME | DIN |
| BS1501-161-430A | EN10028 P265GH | A/SA516 – Grade 60 | DIN 17155 HII |
Jaxon Steel is a trusted manufacturer and supplier of high-quality SA 516 GR.60N NACE and MR 0103-0175 Plates in Houstan, USA. We specialize in premium steel products, including Alloy Steel, Carbon Steel, Mild Steel and Galvanized Steel, with a strong focus on Carbon Steel Sheet and Plates. Our extensive inventory also includes Pipes, Tubes, Flanges, Forged Fittings and Bars. Committed to fast delivery and exceptional customer service, we use only the finest raw materials to ensure superior strength, durability and performance for critical industrial applications. Contact us today for all your SA 516 GR.60N NACE and MR 0103-0175 Plates needs!
SA 516 GR.60N Pressure vessels, storage tanks, heat exchangers, and separators used in harsh service environments are frequently made from plates that meet NACE MR0175 and MR0103 standards. They are essential in gas processing facilities, offshore platforms, petrochemical facilities, and oil refineries where exposure to hydrogen sulfide (H₂S) presents significant risks. Under high pressure and temperature fluctuations, these plates provide exceptional mechanical stability, corrosion resistance, and crack resistance. They are perfect for boilers, pipelines, and vital processing equipment in harsh operating conditions because they are compatible with MR0103/NACE hardness requirements, which guarantee long-term durability, safety, and compliance.
Luke Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Houstan, USA.
